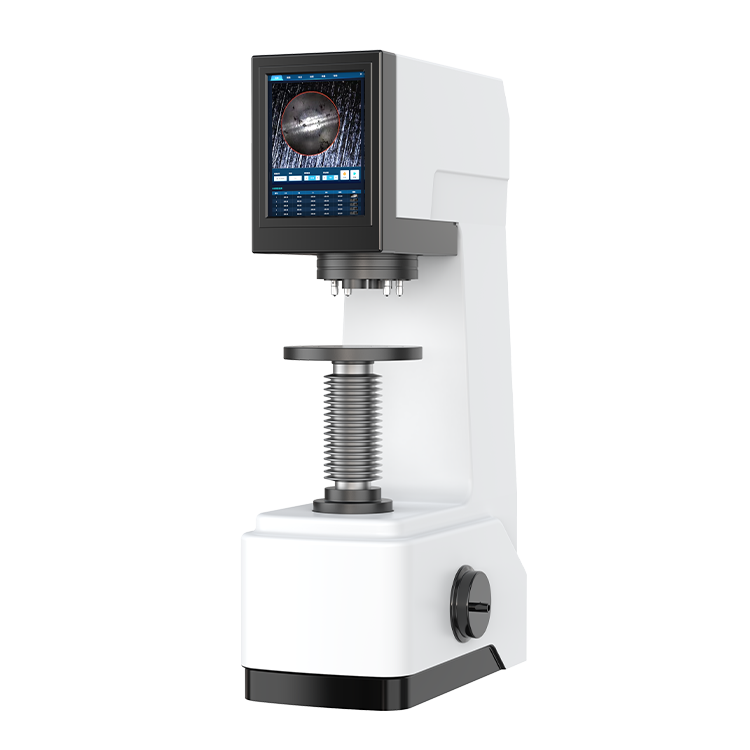

Product instruction
Brinell hardness test is mainly used for hardness measurement of cast iron, steel, non-ferrous metals and soft alloys, etc. In addition, it can also be used for hardness measurement of some non-metallic materials such as hard plastics and bakelite. Suitable for factories, workshops, laboratories, universities and research institutions.
Main Specifications
Name |
Specification |
Test force |
29.42N(30kg) 306.45N(31.25kg) 612.9N(62.5kg)、 980.7N(100kg)、 1226N(125kg)、1839N(187.5kg)、 2452N(250kg)、4903N(500kg)、 7355N(750kg)、 9807N(1000kg)、14710N(1500kg)、29420N(3000kg) |
Convertible ruler |
HB 10/3000、HB 10/1500、HB 10/1000、HB 5/750、HB 10/500、HBW 10/250、HB5/250、HB 2.5/187.5、 HB 10/125、HB5/125、HB10/100、HB 5/62.5、 HB2.5/62.5、HB5/31.25 、HB2.5/31.25、HB1/30 |
Measuring range |
8~650HBW |
Loading method |
Automatic lifting, loading, loading, unloading, automatic measurement of the worktable |
Max. allowable height of the test piece |
280mm |
The distance from the center of the indenter to the machine wall |
200mm |
Main test force loading time |
5~8S |
Dwell time |
0-99S |
Indenter Objective Conversion |
Automatic |
Dimensions |
230*600*920mm |
Weight |
130Kg |
Objective lens |
1X、2X |
Optical path conversion |
Automatic |
Indenter diameter(mm) |
Φ1、Φ2.5、Φ5、Φ10 mounted on the same turret |
Operating mode |
One-button operation, the table automatically lifts, loads, holds, unloads, and measures CMOS |
Indentation image measurement method |
automatic measurement |
Indentation image repeat measurement accuracy |
Repeatability up to ±0.8% |
Data display |
12.1 inch industrial grade touch screen |
Data output |
Output report in WORD and EXCEL form, can be printed out; graphics engine shows more functions |
Statistics |
Hardness conversion: According to national standards, Brinell-Rockwell-Vickers-Knoop and other hardness value conversions are automatically performed and displayed in real time. |
light source |
LED |
function adjustment |
Stepless adjustment of the intensity of the light source |
Communication Interface |
USB、RJ45LAN、WLAN、RS232 |
Dimensions(L×W×H) |
1000×595×350mm |
Voltage |
AC 220V/110V±5%,50~60 Hz |
