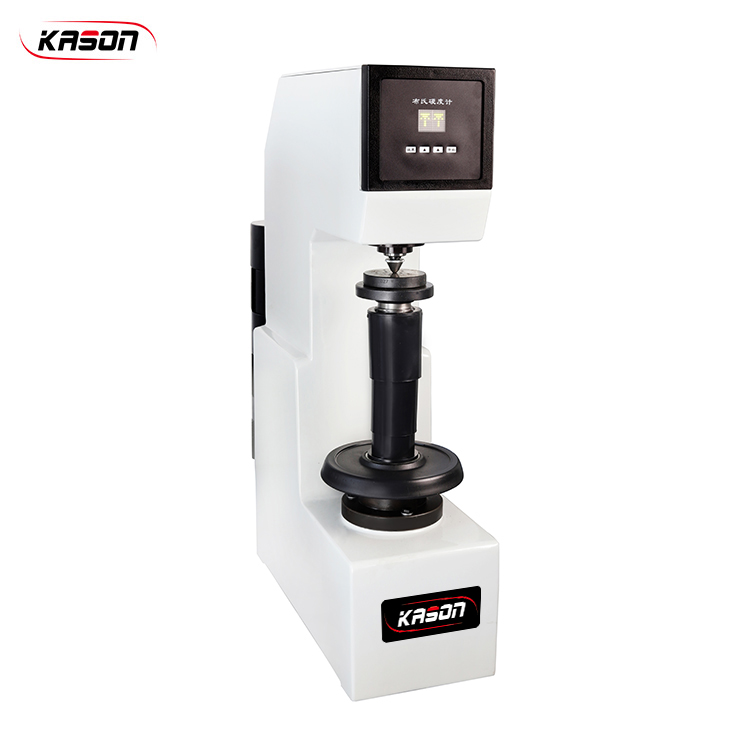

HTB-3000 Brinell Hardness Tester

Application:

Can be used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing

metal materials ' brinell hardness value.

Specifications:

Model:HTB-3000

Testing Range: 8-450HBS，8-650HBW

Testing Force: 1.839、2.452、7.355、9.807、29.42KN（187.5、250、750、1000、3000kgf）

Loading mode: Weight

Indentation measurement method: 20 times readings microscope

Data output: Built-in printer

Duration time: 6～99S

Max Testing Height:230mm

Distance Between Pressing Head Center And The Wall: 120mm

Tungsten carbide ball penetrator: Φ2.5,Φ5,Φ10
