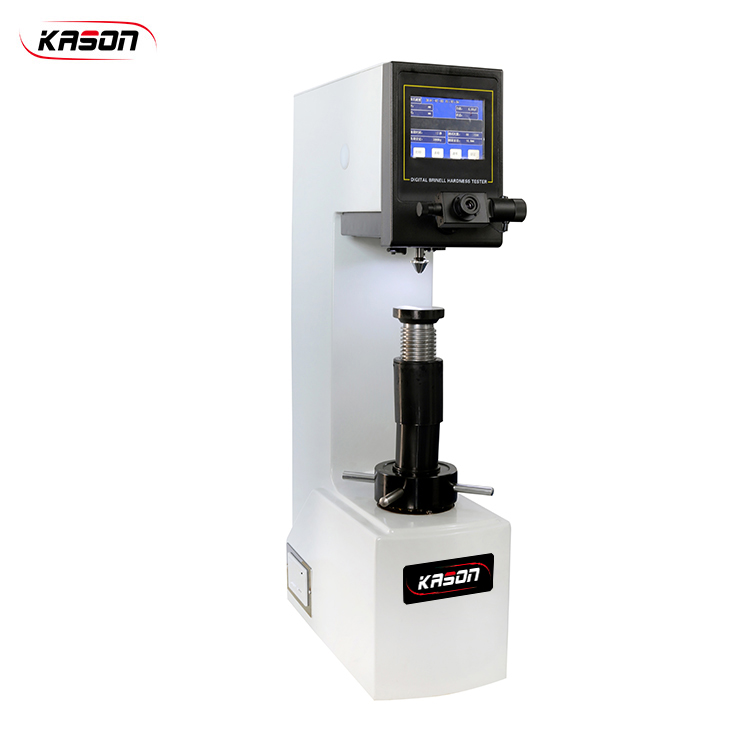

HTB-3000SET Digital Display Brinell Hardness Tester
Application range
It is suitable for the determination of the hardness of cast iron, steel, non-ferrous metals and soft alloys, as well as the determination of the hardness of certain non-metallic materials such as hard plastics and bakelite.
Main Technical Parameter
Test force： 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf,1000kgf, 1500kgf, 3000kgf
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N）
Testing range： 8~650HBW
Indication of Hardness Value：Digital display LCD touch screen to read hardness value
Data output：Build-in printer
Microscope：Direct reading
Mininum value of micrometer drum：1.25μm
Dwell/Holding Time：6-99s
Max. Height of sample：280mm
Distance from center indenter to wall：150mm
Voltage：AC220V，50Hz
Loading mode: Motor, closed-loop control
