Production Introduction:
Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.
Technical Parameters

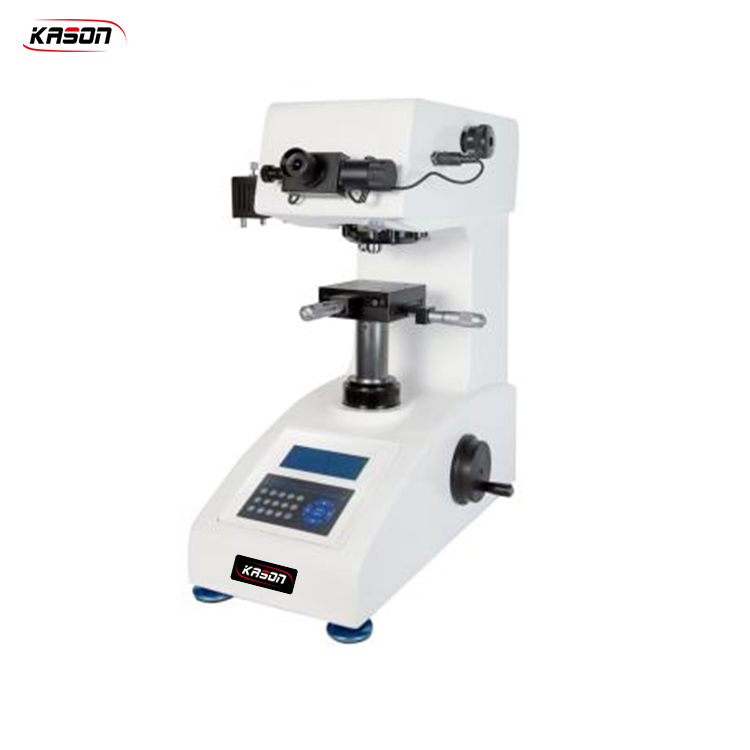

Model:HTMV-1000
Display model:Small LCD digital display
Hardness values:Input D1,D2
Exchange Scales:HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Test force:10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Turret Type:Manual
Loading and unloading mode:Automatic
Dwell Time:Adjustable 0 to 60 seconds
Micrometer eyepiece multiple:10X(optional 15X)
Measurement resolution:0.25µm (drum reading)
Objective magnification:10X 40X
Total magnification:100X(objective)400X(measurement)
measurement range:150µm
light source:Halogen lamp (brightness adjustable)
Hardness conversation:Brinell, rockwell, surface rockwell
Max. Height of Specimen:80mm
Depth at center line:95mm
XY test table size:100X100mm
Max. movement:25*25mm
Min. Measuring Unit:0.01μm
