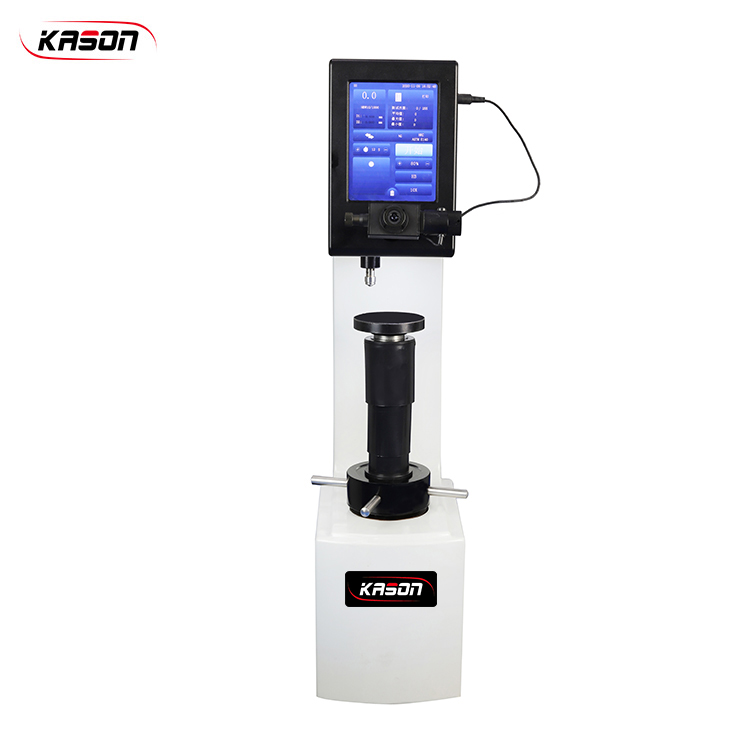

HTB-3000ZT Automatic Turret Brinell Hardness Tester

Production Instruction:

Automatic turret, objectives and indenter can switch freely, testing point is positioning automatically，auto loading,auto unloading.With two objectives outer lighting,almost solve the problem which can not test when indentation is too small or too big, outer lighting make the indentation more clear and precise.

Objective with digital encoder, when test D1,D2 value, LCD display show hardness value ,D1 and D2 value directly.

Specifications:

Model: HTB-3000ZT

Brinell hardness scale:

HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、  HBW10/1500、HBW10/3000

Test force（Kgf）:

62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、 187.5kgf(1839N)、250kgf(2452N), 500kgf(4903N)、750kgf(7355N),   1000kgf(9807N)、1500kgf(14710N)、3000kgf(29420N)

Accuracy of test force:

62.5～250kgf≤1%

500～3000kgf≤0.5%

Measuring device resolution: 0.1um

Hardness resolution: 0.1HBW

Holding/Dwell time: 0～99S

Data output: LCD display

Date storage: measured value is saved in USB stick in EXCEL format

Max. Height of sample: 200mm

Distance from indenter center to the wall: 155mm

Dimension: 550×210×800mm

Weight: 110kg

Voltage: AC220+5%,50～60Hz
