Production Introduction

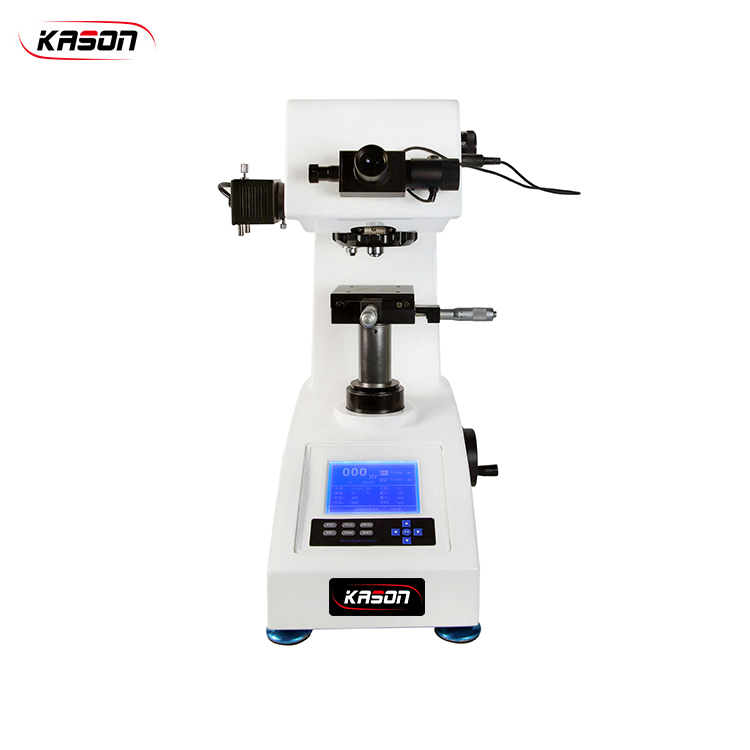

HTMV-1000AD automtaic turret digital display micro-vickers hardness tester LCD display screen is adopted, and the operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel. The hardness value tested will be automatically calculated and displayed. Various hardness values can be converted to each other.
Application:
Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.
Technical Parameter
Model: HTMV-1000AD
Test force: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Minimum test unit: 0.031µm
Exchange Scales: HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Measuring range: 5~3000HV
Test method of force application: Automatic( loading, dwelling,unloading )
Test microscope magnification: 100X(objective)400X(measurement)
Test load dwell time: 0~60s
X-Y table size:100*100mm Mx. movement:25*25mm
data output: LCD display,Built-in printer and rs-232 interface
Max Height of Specimen: 110mm
Distance from the center of the head to the outer wall: 110mm
power supply: AC220V+5%,50-60Hz
Dimensions: 405*290*480mm
Weight: 40Kg
