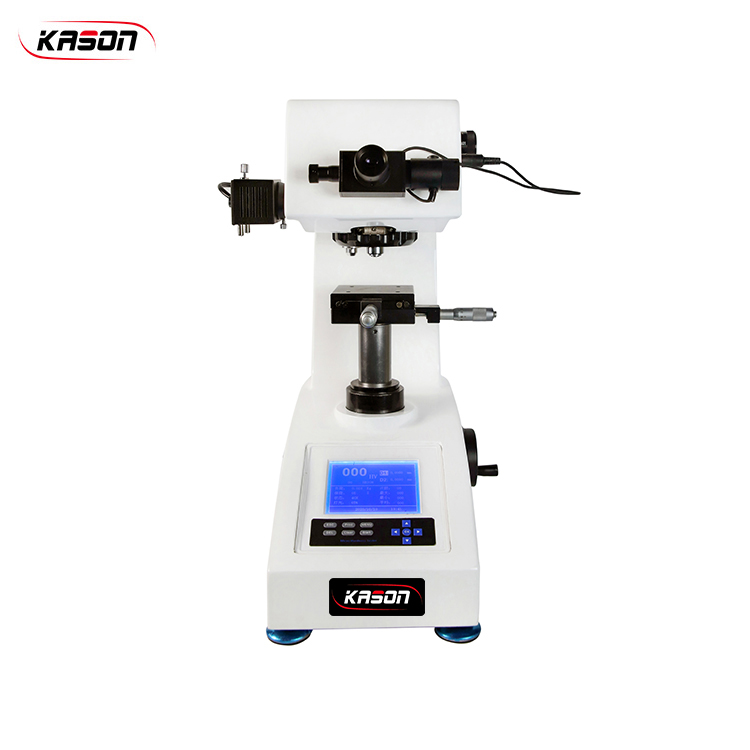

HTMV-1000D Manual Turret Digital Display Micro Vickers Hardness Tester

Production Introduction

HTMV-1000D manual turret digital display micro-vickers hardness tester LCD display screen is adopted, and the operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel.

Application：

Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc

Technical Parameter

Model: HTMV-1000D

Test force: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)

Minimum test unit: 0.031µm

Exchange Scales: HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T

Measuring range: 5~3000HV

Test method of force application: Automatic( loading, dwelling,unloading )

Test microscope magnification: 100X（objective）400X(measurement)

Test load dwell time: 0~60s

X-Y table size：100*100mm Mx. movement：25*25mm

data output: LCD display，Built-in printer and rs-232 interface

Max Height of Specimen: 110mm

Distance from the center of the head to the outer wall: 110mm

power supply: AC220V+5%，50-60Hz

Dimensions: 405*290*480mm

Weight: 40Kg
