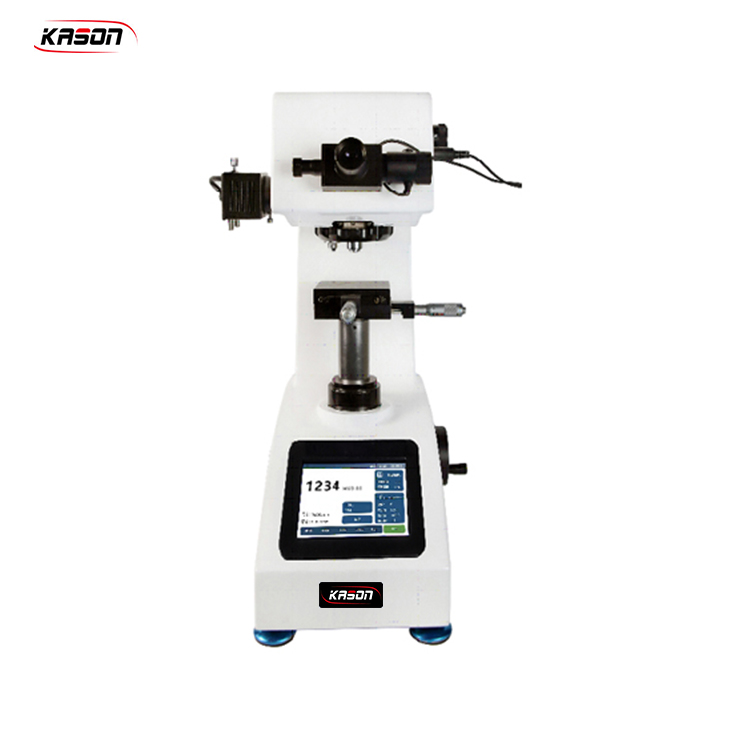

HTMV-1000T Touch Screen Micro Vickers Hardness Tester

Production Introduction:

Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.

Technical Parameters:

Model:HTMV-1000T

Display model: Touch LCD Digita Display

Hardness values:Direct Display

Exchange Scales:HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T

Test force:10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)

Turret Type:Manual

Loading and unloading mode:Automatic

Dwell Time:Adjustable 0 to 60 seconds

Micrometer eyepiece multiple:10X(optional 15X)

Measurement resolution:0.25µm  (drum  reading)

Objective magnification:10X 40X

Total magnification:100X（objective）400X(measurement)

measurement range:150µm

light source:Halogen lamp (brightness adjustable)

Hardness conversation:Brinell, rockwell, surface rockwell

Max. Height of Specimen:80mm

Depth at center line:95mm

XY test table size:100X100mm

Max. movement：25*25mm

Min. Measuring Unit:0.01μm
