Production Introduction:
Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.
Technical Parameters :

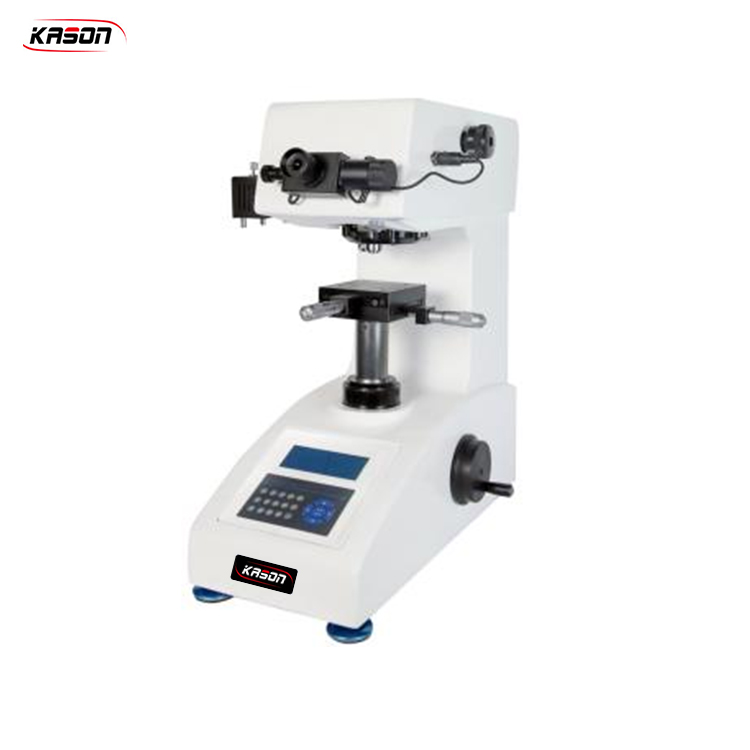

Model: HTMV-1000A
Hardness Scale: Vickers hardness, Knoop hardness
Test Force: 10,25,50,100,200,300,500,1000gf
Testing Range: 1HV-3000HV
Test Force Selection Method: Manual
Load and unload mode: Automatic
Dwell time of the test force:0-60S(adjustable)
Lens/indenters with: With Automatic turret
Ocular lens: 10X
Min. graduation value of the testing drum wheel: 0.25μm(Drum reading)
Objective lens: 10X 40X
Amplification of the microscope: 100X(observation),400X(measurement)
Range of measurement: 150μm
Optical channel: Dual channel /CCD
Filter lens: Green color
Light source: Halogen light (brightnesss adjustable)
Hardness value resolution: 0.1 Vickers unit
Hardness conversion: Brinell, Rockwell,Surface Rockwell
Max. height of the testing piece: 110mm
Depth from center line: 110mm
Dimension of XY worktable: 100*100mm
Movement fieldl of XY worktable: 25*25mm
Min. movement of XY worktable: 0.01mm
Working temperature: 23±5 °C
Working humidity: <65%
Dimension of machine: 530*290*490mm
Net weight: 40KG
Power supply: 220V 2A 50-60Hz
