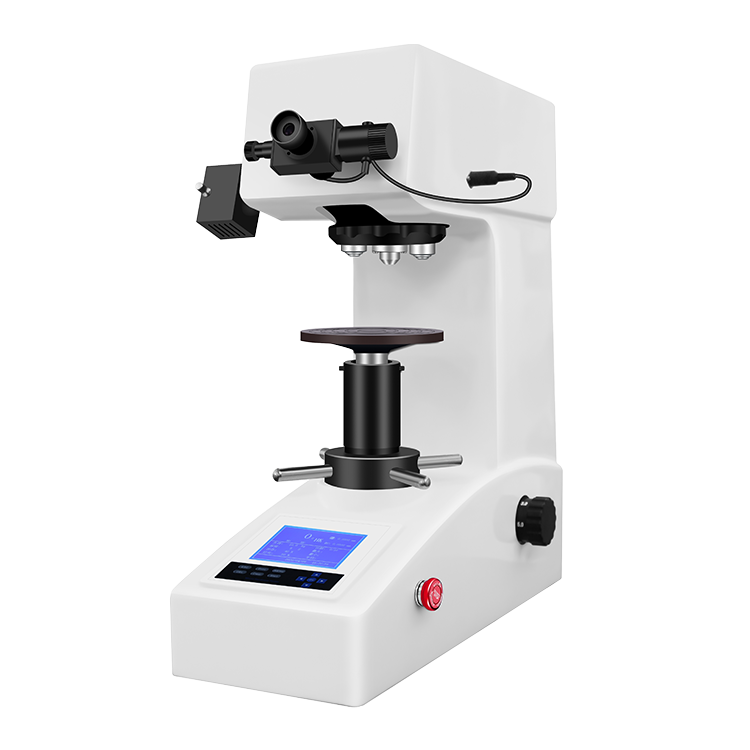

HTV-5/10/30/50AD Automatic Turret Digital Display Vickers Hardness Tester
Main Features:
Digital Automatic Turret Vickers hardness tester with large screen LCD display, use the menu interface type structure. can be in operation panel choose hardness HV or rod HK, test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion, and the testing result is automatic storage, processing, printing, with RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input, hardness value more accurate meets the requirement.
Technical Specificatio
|
Model |
HTV-5AD |
HTV-10AD |
HTV-30AD |
HTV-50AD |
|
|
Test Force |
Kgf |
0.3, 0.5, 1,2, 3, 5 |
0.3, 0.5, 1, 2,3, 5, 10 |
1, 3, 5,10, 20, 30 |
1, 5, 10, 20, 30, 50 |
|
|
N |
2.94, 4.9, 9.8,19.6, 29.4, 49.0 |
2.94, 4.9, 9.8, 19.6, 29.4, 49, 98 |
9.8, 29.4, 49 ,98, 196, 294 |
9.8, 49, 98, 196, 294, 490 |
|
Test Range |
8HV~2900HV |
||||
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
||||
|
Shifting beteen Objective and Indenter |
Automatic |
||||
|
Total Magnification |
100×, 200× |
100X(Measuring) |
|||
|
Resolution |
0.5µm |
1μm |
|||
|
Dwell Time |
0~60s |
||||
|
Max. Height of Specimen |
160mm |
||||
|
Throat |
135mm |
||||
|
Power Supply |
AC220V, 50Hz |
||||
|
Execute Standard |
ISO 6507, ASTM E92, jIS Z2244,GB/T 4340.2 |
||||
|
Dimension |
520*190*650mm |
||||
|
Weight (kg) |
Gross Weight: 91kg |
||||
