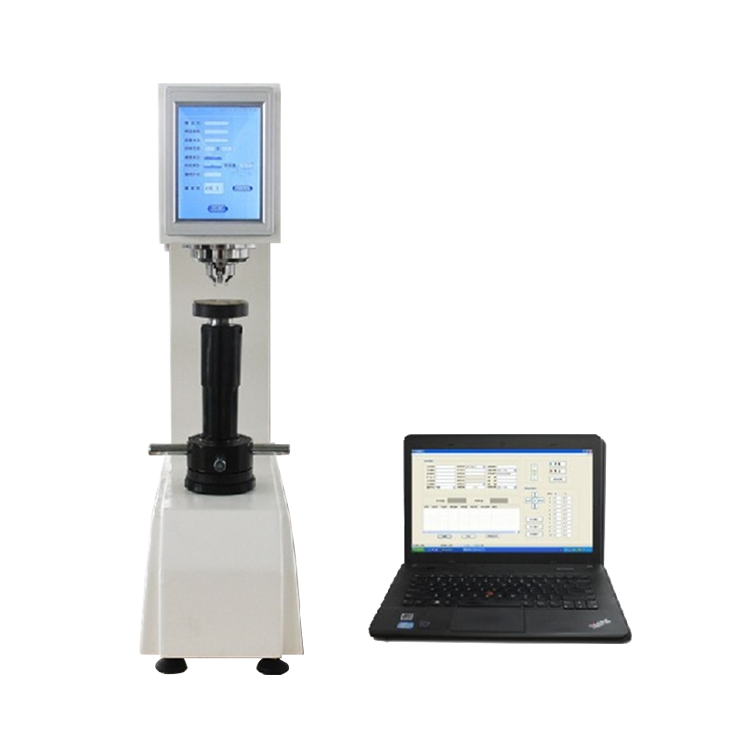

KASON-CM-150 Digital pencil hardness tester
Product introduction
1. Meet DIN 51917-2002 carbon material inspection hardness inspection;
2. The computer controls the entire testing process, and the testing process is fully automatic;
3. Automatically apply preload;
4. Automatically add and unload main load;
5. The hardness value is automatically generated and included in the database;
6. Hardness testing data will be kept forever and database can be queried;
7. Automatically generate user-customized inspection reports.
Technical Parameters
|
Implementation standards |
DIN 51917-2002 Carbon material inspection and hardness inspection |
|
JBT 8133.3-2013 Test methods for physical and chemical properties of electric carbon products |
|
|
Loading method |
Sensor loading, closed loop control |
|
force range |
7.0kgf to 150kgf |
|
Measure force value |
7.0Kgf/68.6N, 20Kgf/196.13N, 40kgf/392.26, 60Kgf/588.4N, 100kgf/980.7N, 150kgf/1471N |
|
ruler |
HR 2.5/7, HR 5/7，HR 10/20, HR 5/20，HR 10/40, HR 5/40，HR 10/60, HR 5/60，HR 10/100, HR 5/100，HR 10/150, HR 5/150 |
|
Function |
Automatic loading, saving and unloading, the hardness value is automatically measured and saved in the database |
|
Pressure head |
Tungsten carbide ball indenter: 2.5mm, 5mm, 10mm |
|
Total experimental force dwell time |
1 - 99 s |
|
Sample specifications |
Maximum height of specimen: 160mm |
|
Indenter-outer wall distance: 160mm |
|
|
power supply |
100V AC to 240V AC, 50Hz/60Hz, |
|
size |
560mm x 220mm x 800mm (length x width x height) |
|
weight |
76kg |
|
The following rulers are customized: |
|
|
Rockwell measuring scale |
A, B, C, D, E, F, G, H, K, L, M, P, R, S, V |
|
Surface Rockwell scale |
15N, 30N, 45N, 15T, 30T, 45T, |
|
15W, 30W, 45W, 15X, 30X, 45X, |
|
|
15Y, 30Y, 45Y |
|
