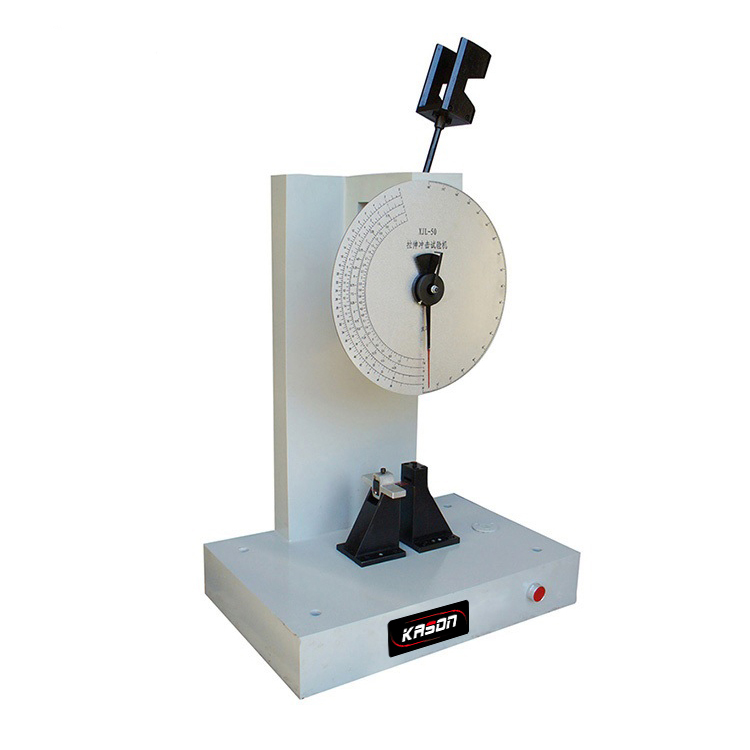

Plastic Izod Impact Strength Tester For Plastic Test Equipment
1.Applications:
Dial DisplayPlasticCharpy Impact Testing Machineis pointer dial, electric hammer block release.
Application:hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2. Standard:
JB/T8761、GB/T1043、ISO179 and so on.
3. Main Specifications:
Dial DisplayPlasticCharpy Impact Testing Machineis pointer dial, electric hammer block release.
Application:hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2. Standard:
JB/T8761、GB/T1043、ISO179 and so on.
3. Main Specifications:
| Model | HPIT-5J | HPIT-50J |
| Impact Energy | 5 J | 50 J |
| Impact Speed | 2.9 m/s | 3.8m/s |
| Pendulum Angle | 160° | 160° |
| Round Angle Of The Jaw | R=1±0.1 mm | |
| Round Angle Of Impact Cutting Edge | R=2±0.5 mm | |
| Impact Blade Angle | 30±l° | |
|
The Distance Between Pendulum Center And Sample Center |
221 mm | 380mm |
