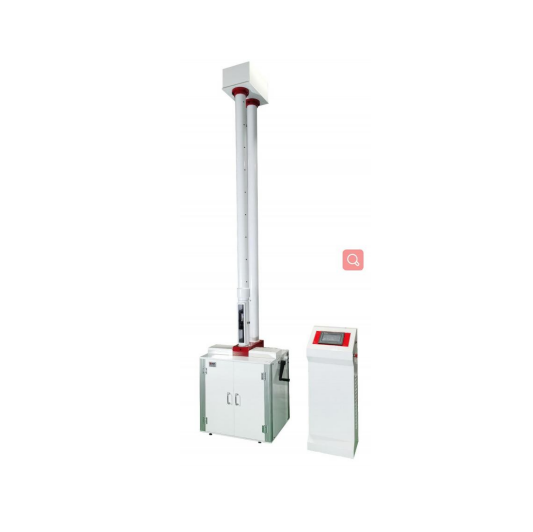

KASON DIT630B Pipe Falling Hammer Impact Testing Machine
Application:
type drop hammer impact testing machine for plastic pipe to do impact test, is a test instrument used to evaluate the impact resistance of materials.
Standards
ISO 4422, ISO3127, BS EN, BS EN1411, 744, ASTM D2444
Technical parameter
|
Model |
KASON DIT630B |
|
Striker mass |
0.250kg~16.00kg, increments are 0.100kg and 0.250kg |
|
Drop weight mass error |
<0.5% (the accuracy of the 2.000kg hammer body and 1.000kg and 2.000kg weights is ±0.1%) |
|
Dimensions for the nose of the striker |
D90mm, D25mm; Note: (SR5, SR10, SR30) are optional according to user requirements. |
|
Impact height |
50-2000mm |
|
Height error |
±2mm |
|
Lifting speed |
10m/min |
|
Specimen specification |
Φ10mm~Φ630mm, can be customized |
|
Hammer lifting method |
pneumatic |
|
Power supply |
AC220V, 50Hz |
|
Dimensions |
1320×600×3800mm |
|
Weight |
350Kg |
|
Space required |
Recommended front and rear 1.5m, left and right 0.5m, upper 0.5m (requires a minimum laboratory height of 4 meters) |
