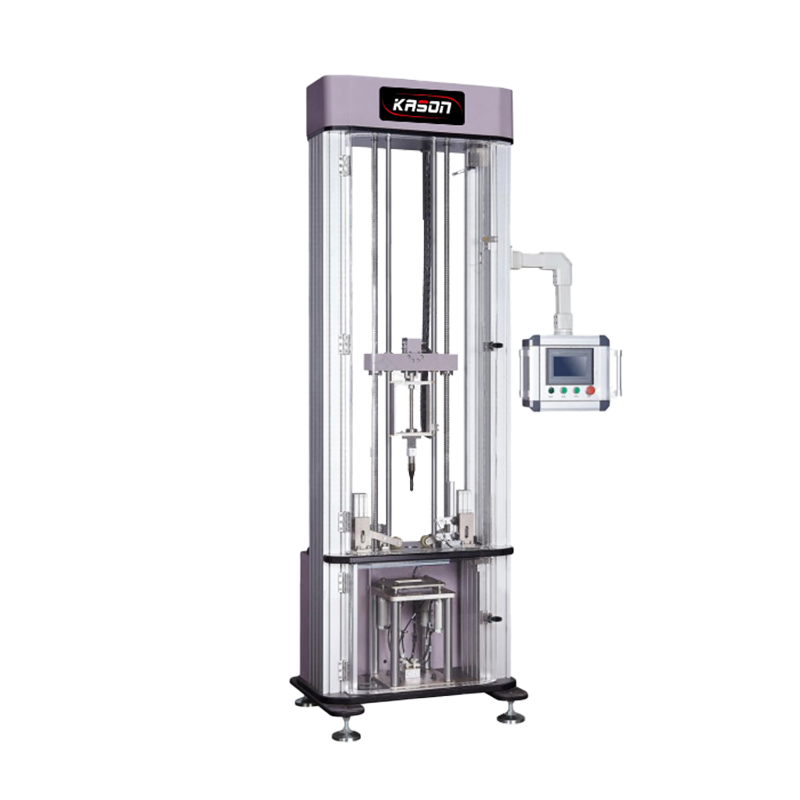

KASON DIT302C Composite Plate Drop Weight Impact Testing Machine

KASON DIT302C Composite Plate Drop Weight Impact Testing Machine
KASON DIT302C Composite Plate Drop Weight Impact Testing Machine
KASON DIT302C Composite Plate Drop Weight Impact Testing Machine

Application:

composite plate drop hammer impact tester is mainly suitable for prefabricated damage testing of composite plates, meeting various specifications of the aerospace and automotive industries. It uses impact force value sensors, test systems, and high-speed data acquisition cards to measure the load and deformation transient values of the impacted sample fracture process, that is, the impact absorption work, the force-displacement-energy curve of the impact process, and the characteristic points on the curve: slope discontinuity force F1, maximum contact force Fm, maximum force energy Wm, total impact energy Wt and corresponding displacement, so as to realize data analysis of the sample impact process, reflect the material's ability to resist dynamic impact loads, the force and deformation characteristics of the sample under impact loads, and the dynamic fracture toughness analysis of the material at high strain rates.

Standard

ASTM D 7136/D 7136MStandard Test Method for Measuring the Damage Resistance of a Fiber-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event

GB/T21239 Test method for compression performance of fiber reinforced plastic laminates after impact

Note: The standards cited are the latest standards in effect at the date of publication.

Specifications

model

KASON DIT302E

Impact energy

6300 J

Impact speed

1.474.65 m/min

Hammer lifting speed

1m/min3m/min continuously adjustable

Impact height

110-1100 mm

Hammer positioning accuracy

1.0 mm

Hammer mass

5.5~29.5 kg

Hammer head diameter (hemisphere)

16 mm

Hammer positioning accuracy

1mm

Impact force sensor maximum load

100kN

Static linear error of impact force sensor

Full scale ±1% (10%50%FS)

±2% point by point (50%100%FS)

A/D sampling resolution

16 bits

Maximum sampling frequency

2MHz

Frequency Response

500kHz

Experimental dynamic error

<2%

Host size (length × width × height)

1430 × 670 × 2630 mm

power supply

AC220V±10% 50Hz 400W

weight

550 kg
