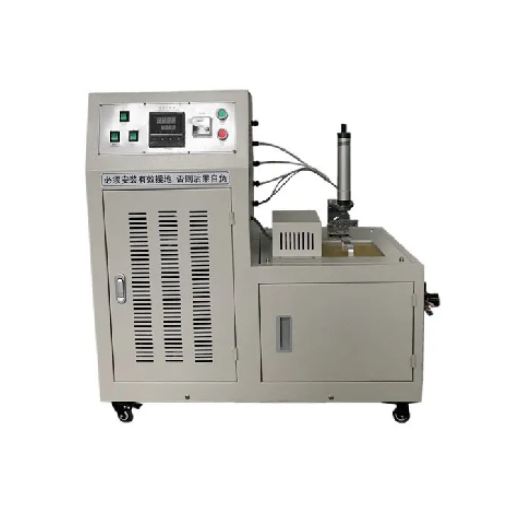

KASON-RLT6300 Rubber Low Temperature Brittleness Testing Machine
Application
The low-temperature brittleness testing machine is to determine the lowest temperature at which rubber materials do not exhibit brittle failure or the temperature at which half of the test pieces used in a test fail when impacted under specified conditions.Therefore, it is indispensable in the quality inspection of scientific research materials and products, and the control of the production process.
Rubber Applicable Standards
1. ISO812 Rubber, vulcanized or thermoplastic - Determination of low-temperature brittleness
2. GB/T 15256 Rubber, vulcanized or thermoplastic - Determination of low-temperature brittleness
3. JIS-K-6261-2006 Rubber, vulcanized or thermoplastic - Determination of low temperature properties
4. ASTM D2137 Rubber property-Brittleness point of flexible polymers and coated fabrics
Specifications
|
Model |
KASON-RLT6300 |
|
Temperature range |
-60°C to 0°C |
|
Temperature accuracy |
± 0.5°C |
|
Impact speed |
2 m/s ± 0.2 m/s |
|
Temperature fluctuation |
<± 0.5°C |
|
Distance between center of impact or bottom of gripper |
11 ± 0.5 mm |
|
Outer dimension |
720×700×1380 mm |
|
Cold well volume |
700 ml |
|
Power |
1100 W |
|
Net weight |
180 kg |
