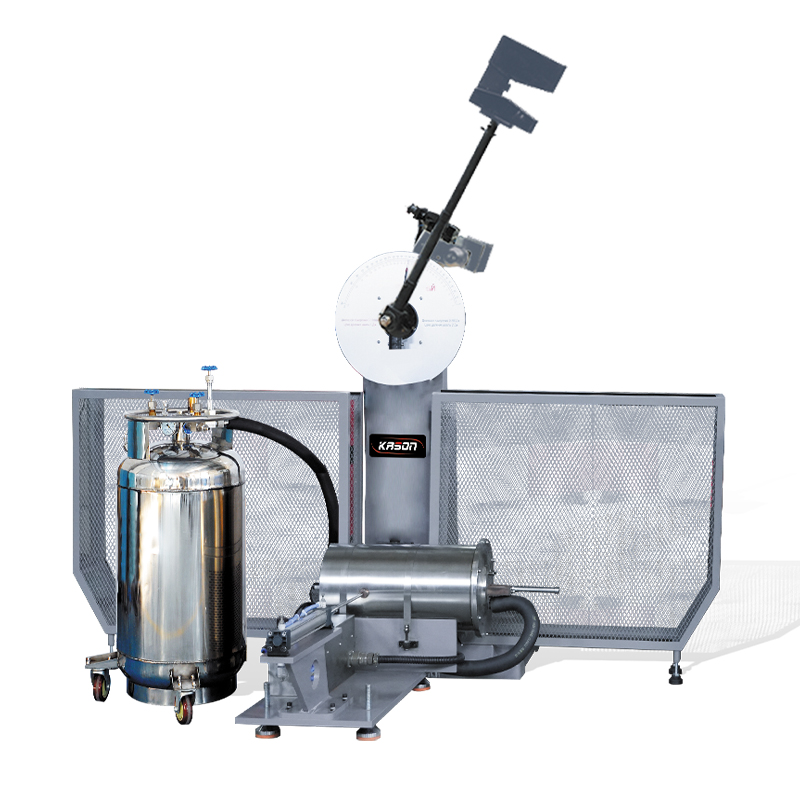

KASON PIT302T-/502T-196 Digital display Low-temperature Automatic Charpy Impact Testing Machine(-196°C)
Application:
Low-temperature Automatic Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materials under dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.
Digital Low Temperature Impact Testing Machine: adopting PLC Controller, the results can be displayed on both LCD digital.screen and dial gauge. The test results also can be printed out with micro-printer.
Liquid nitrogen refrigeration
Standards
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
Specifications
|
Model |
PIT302T-196 |
PIT502T-196 |
|
Max. impact energy (J) |
300 |
500 |
|
The distance between the pendulum shaft and impact point(mm) |
750 |
800 |
|
Impact speed(m/s) |
5.2 |
|
|
Raised angle |
150° |
|
|
Standard span(mm) |
40+0.2 |
|
|
Round angle of the jaw(mm) |
R1-1.5 |
|
|
Round angle of impact edge(mm) |
R2-2.5,R8±0.05(special order) |
|
|
Angle accuracy |
0.1° |
|
|
Standard specimen dimension(mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
|
|
Thickness of impact knife(mm) |
16 |
|
|
Dip angle of supporting surface of supports |
11° |
|
|
Cooling way |
Liquid nitrogen |
|
|
Capacity of sample box |
10 |
|
|
Range of low temperature |
-196°C |
|
|
Speed of sending specimen |
≤2S |
|
|
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
|
