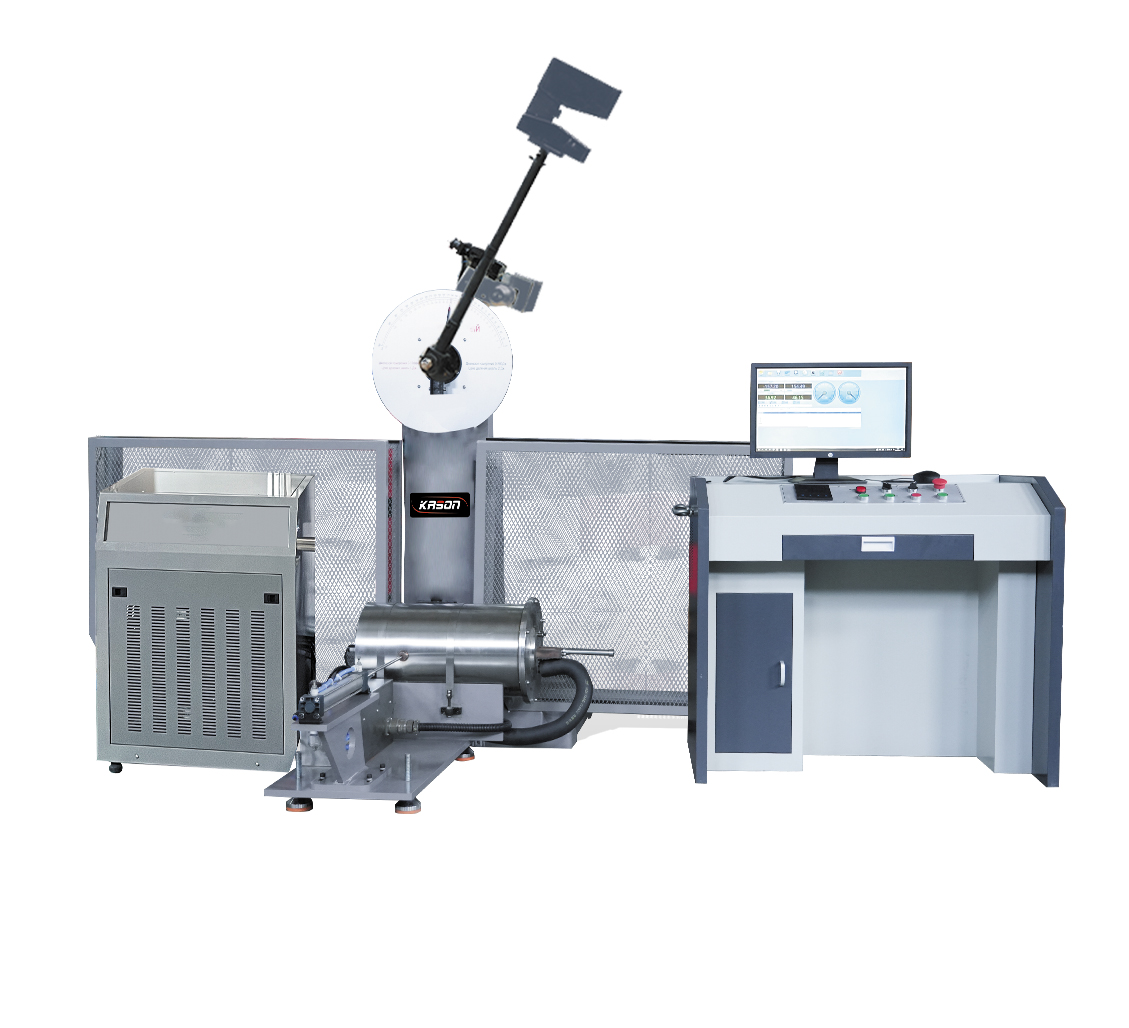

KASON PIT302W/PIT502W-60/80 Computer Low-temperature Automatic Charpy Impact Testing Machine(-60°c/80°c)
Application:
Full Automatic Impact Testing Machine was widely used in mechanical metallurgy, aerospace engineering, vessel building, academy and institute, and nuclear power engineering fields which has high requirement on temperature testing with high efficiency.
Standards:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallic materials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures
Specifications
Model
PIT302W-60/80
PIT502W-60/80
Max. impact energy (J)
300
500
The distance between the pendulum shaft and impact point(mm)
750
800
Impact speed(m/s)
5.2
Raised angle
150°
Standard span(mm)
40+0.2
Round angle of the jaw(mm)
R1-1.5
Round angle of impact edge(mm)
R2-2.5,R8±0.05(special order)
Angle accuracy
0.1°
Standard specimen dimension(mm)
55x10x10 , 55x10x7.5 , 55x10x5
Thickness of impact knife(mm)
16
Dip angle of supporting surface of supports
11°
Cooling way
compressor
Capacity of sample box
20
Range of low temperature
-60°c/80°c
Speed of sending specimen
≤2S
Power supply
3phs, 380V, 50Hz Or 220V,60Hz
