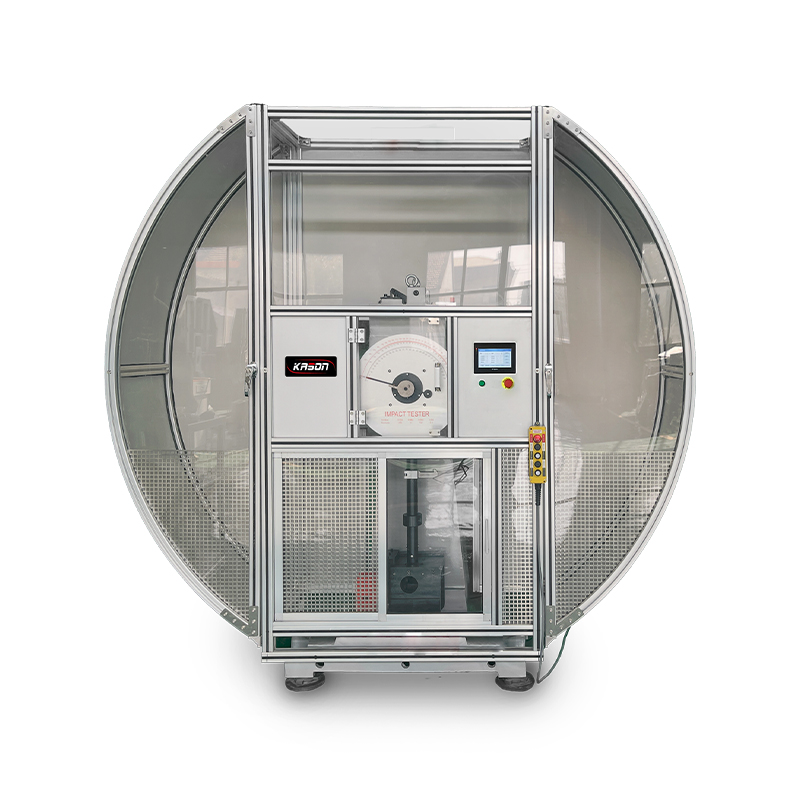

KASON PIT302T 300j 150j Pendulum Charpy Impact Testing Machine with Touch Screen
JBS series LCD touching screen display Pendulum impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Main Technical Specifications:
|
Model |
KASON PIT302T |
KASON PIT502T |
KASON PIT802T |
|
impact energy |
150/300J |
250/500J |
500/800J |
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
800mm |
|
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
|
Pre-rising angle of the pendulum |
150° |
||
|
Specimen bearer span |
40+0.2mm |
||
|
Round angle of the jaw |
R1-1.5mm |
||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||
|
Angle accuracy |
0.1° |
||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||
|
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||
