Application:
This series materials testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Typical test applications for wide range of tension, compression, bending, shearing and low cycle test. include metal, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts, etc.
Features:

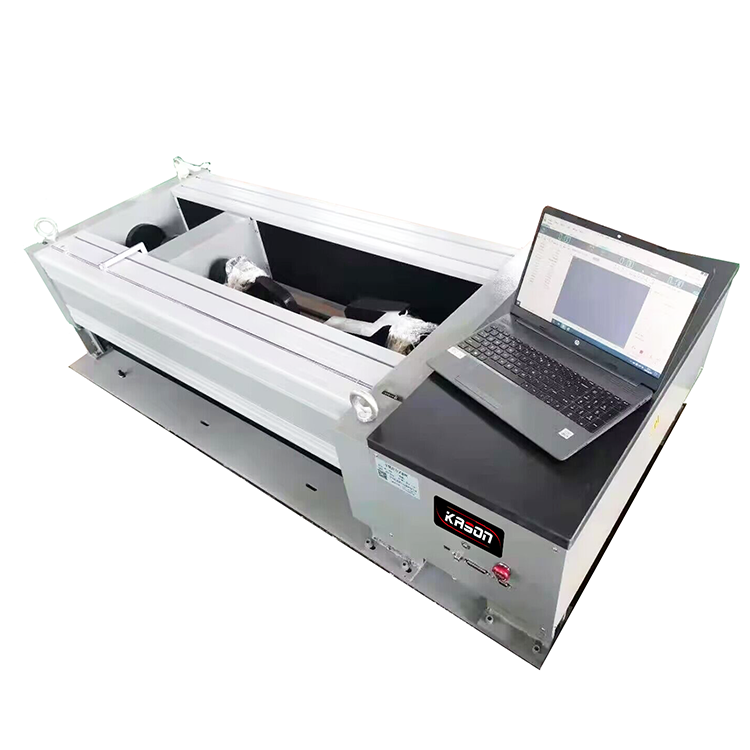

This machine consists of the host, drive system and computer measurement and control system of three parts. This machine is the automatic computer acquisition experiment data and the automatic control process. Frame use the H frame structure, test force by the ball screw, load sensor, the encoder measuring displacement, computer screen displays real-time test power and test curve and automatic processing of test data according to the preset test method, sample clamping way is bolt method.
Specifications:
Model |
EWAL-10/20 |
EWAL-50 |
EWAL-100 |
EWAL-200 |
EWAL-300 |
Control Way |
Close-loop servo and motor control |
||||
Max. Load force(kN) |
10/20 |
50 |
100 |
200 |
300 |
Accuracy |
≤0.5% ; 0.5 class |
||||
Deformation accuracy
|
<±0.5% of reading
|
||||
Displacement Resolution |
0.01 mm |
||||
Test Force Measurement Range |
2%-100% FS |
||||
Effective Tensile Space |
Customized upon request |
||||
Net space between columns |
Customized upon request |
||||
Loading Speed (mm/min)
|
0.05~500 |
0.05~200 |
|||
Structure |
Center ball screw driven |
||||
Voltage |
220V/380VAC±10%;50Hz/60Hz |
