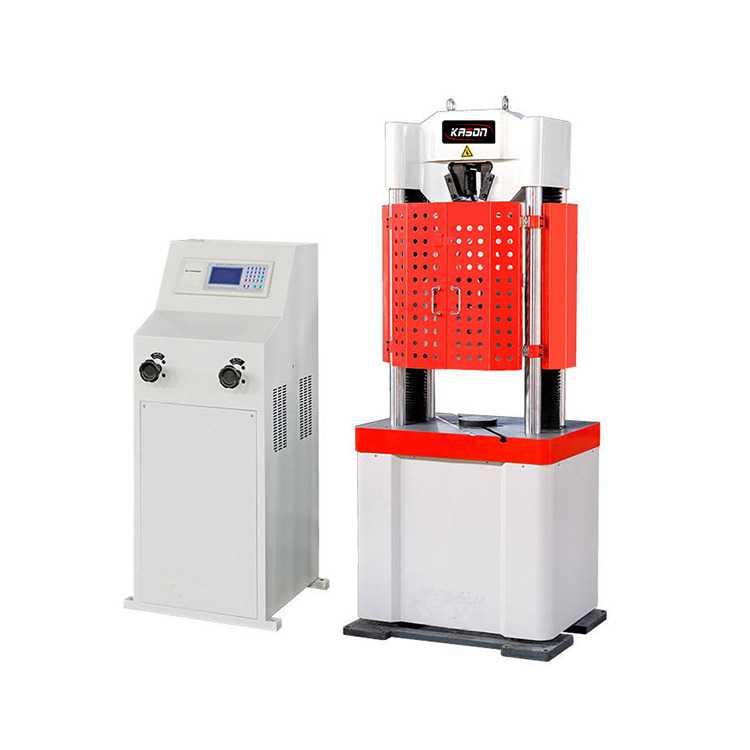

HUT-S Digtal Display Hydraulic Universal Testing Machine
1. Application:
This series of testing machine is mainly used for tensile, compression, bending and other tests of metal materials, and is equipped with cold bending accessories, which can also be used for process tests of metal materials. Therefore, this experiment meets the needs of scientific research institutions, basic construction units, metallurgy, machinery manufacturing and various school laboratories. The working oil cylinder of this series of testing machine adopts lower, oil pressure loading, sensor force measurement, digital display of force value, and has a loading speed indicator window, which can adjust the loading speed at any time. Easy operation, stable performance, safe and reliable.
2. Specification:
|
Model |
HUT105S |
HUT305S |
HUT605S |
HUT106S |
|
Frame Type
|
4-Column 2 screw construction
|
|||
|
Max. Load(kN)
|
100 |
300 |
600 |
1000 |
|
Load Accuracy |
Class 1/ Class 0.5(optional) |
|||
|
Load Range |
2%~100%FS
|
|||
|
Load Resolution |
1/300000 |
|||
|
Deformation Measurement Range |
2%~100%FS |
|||
|
Deformation Accuracy |
≤± 1%/0.5
|
|||
|
Displacement Resolution |
0.001mm |
|||
|
Displacement Error |
≤±0.5% |
|||
|
Testing speeds (mm/min)
|
0.1~125
|
|||
|
Max. Piston Stroke(mm) |
200 |
|||
|
Max. Tension Test Space(mm) |
600 |
600 |
600 |
600 |
|
Max. Compression Test Space(mm) |
500 |
500 |
500 |
500 |
