Application

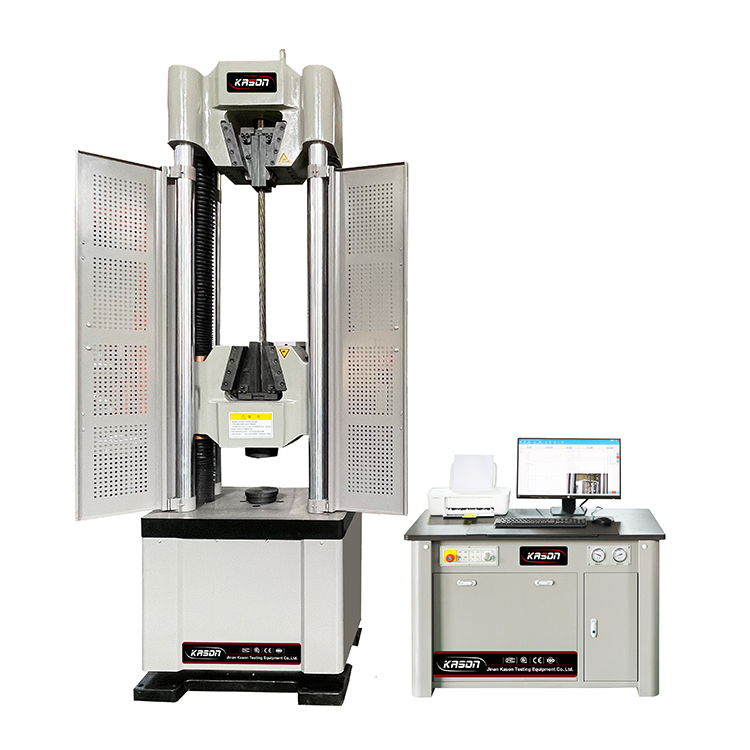

Model | LAW-600H | LAW-1000H |
Max.test force(kN) | 600 | 1000 |
Structure | 4 columns two ball screws, chain transmission, oil cylinder down-setting type | |
Test machine class | 1 Class | |
Test force range(FS) | 2%-100% | |
Relative error of force reading(%) | ≥±1 | |
Test force resolution | 1/20000 | |
Deformation measurement range (FS) | 2%~100% | |
Deformation resolution | 1/20000 | |
Relative error of deformation reading (%) | ≥±0.5 | |
Displacement resolution (mm) | 0.01 | |
Relative error of displacement reading (%) | ≥±0.5% | |
Effective column space (mm) | 600 | 730 |
Tension fixtures configuration | Hydraulic automatic clamping type | |
Stranded wire clamping range(mm) | Ф12.7 or Ф15.2 or Ф15.2 mm | |
Power supply | 380V/50Hz/Three-phase four-wire system | |
Compression grip | Φ160 sphere automatically leveling compression grip | |
Optional parts | ||
Bending grip | Compression platen, Three points bending grip | |
Bending roller upper and lower diameter | ||
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
