1.Application:

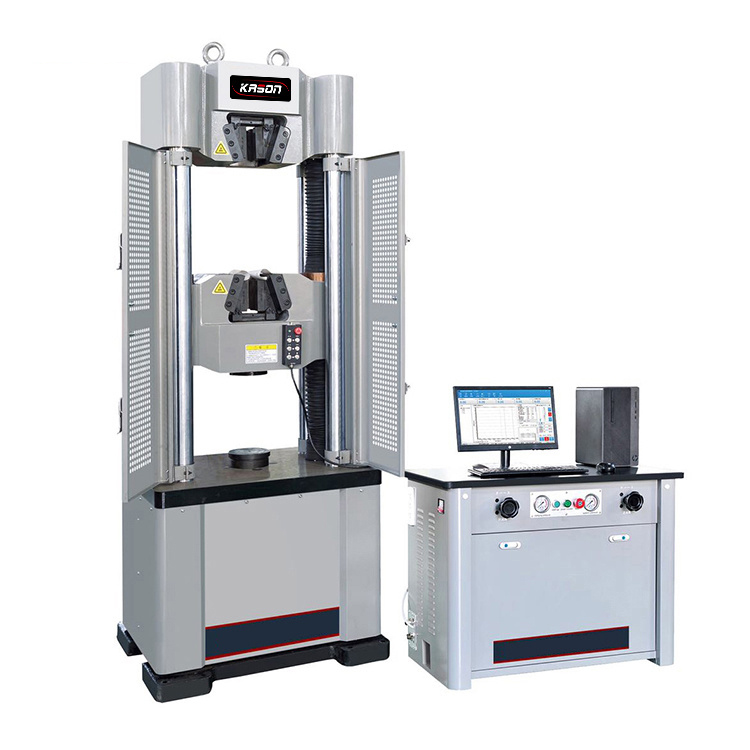

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2.Standards:ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Specifications:
Model
HUT105E
HUT305E
HUT605E
HUT106E
Frame Type
4-Column 2 screw construction
Max. Load(kN)
100
300
600
1000
Load Accuracy
Class 1/ Class 0.5(optional)
Load Range
2%~100%FS
Load Resolution
1/500000
Deformation Measurement Range
2%~100%FS
Deformation Accuracy
≤± 1%/0.5
Displacement Resolution
0.001mm
Displacement Error
≤±0.5%
Testing speeds (mm/min)
0.1~125
Max. Piston Stroke(mm)
200
Max. Tension Test Space(mm)
600
600
600
600
Max. Compression Test Space(mm)
500
500
500
500
Clamping Method
Hydraulic Automatic Clamp
Flat Specimen Clamping Width(mm)
75*75
Compression Plate Size(mm)
Φ 160 ( Optional204 x 204mm)
Bending Roller Distance(mm)
450
Width Of Bending Rollers(mm)
120
Power Supply
3-phase, AC380V, 50Hz (Can Be Customized)
Overall Dimensions (L*W*H: mm)
760*690*2055
Weight(kG)
1750
