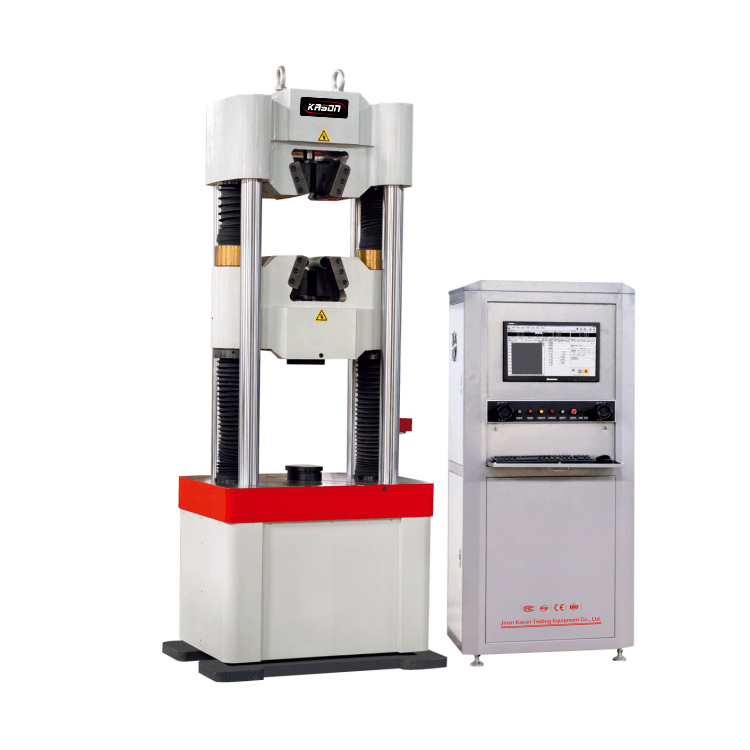

Hydraulic UTM Universal Testing Machine for Compression/Tension/Tensile/3 Point Bending/Pressure Test
1.Application
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests.
Specially indicated to switch test mode, thanks to its dual space design.
The choice of test mode tensile / compressive or tensile bending can be performed without switching devices, increasing the productivity.
2.Standards
Manufactured according to Standards EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide.
3.Specification
Model
WE-600D
Structure
6 column
Crosshead lifting Method
Nut rotate
Control way
loading process manual control
Max. Load(kN)
600KN
Load accuracy
≤±1%
Load range
2%-100%FS
Load resolution
0.01kN
Piston speed
0-90mm/min
Crosshead lifting speed
270mm/min
Max. tension test space(mm)
650
Max.Compression Test Space()mm)
500
Column clearance (mm)
475
Max.piston stroke (mm)
250
Clamping method
Optional/Hydraulic clamping(Optional)
Round specimen clamping range (mm)
Φ13-Φ40 (Φ6-Φ13 , Φ40-Φ50 Optional )
Flat specimen clamping range (mm)
0-15 (15-30 Optional)
Flat specimen clamping width (mm)
80
Compression platen size (mm)
φ160
Span of bending rollers (mm)
450
Width of bending rollers (mm)
120
Power supply
3-phase,AC380V, 50Hz（can be customized）
Weight(kg)
1200
|
|
|
|
|
|
|||
|
|
|
||||||
|
|
|
||||||
|
|
|
|
|
|
|||
|
|
|
||||||
|
|
|
||||||
|
|
|
||||||
|
|
|
||||||
|
|
|
||||||
|
|
|
||||||
|
|
|
||||||
|
|
|
|
|
|
|||
|
|
|
||||||
|
|
|
||||||
|
|
|
|
|
|
|||
|
|
|
||||||
