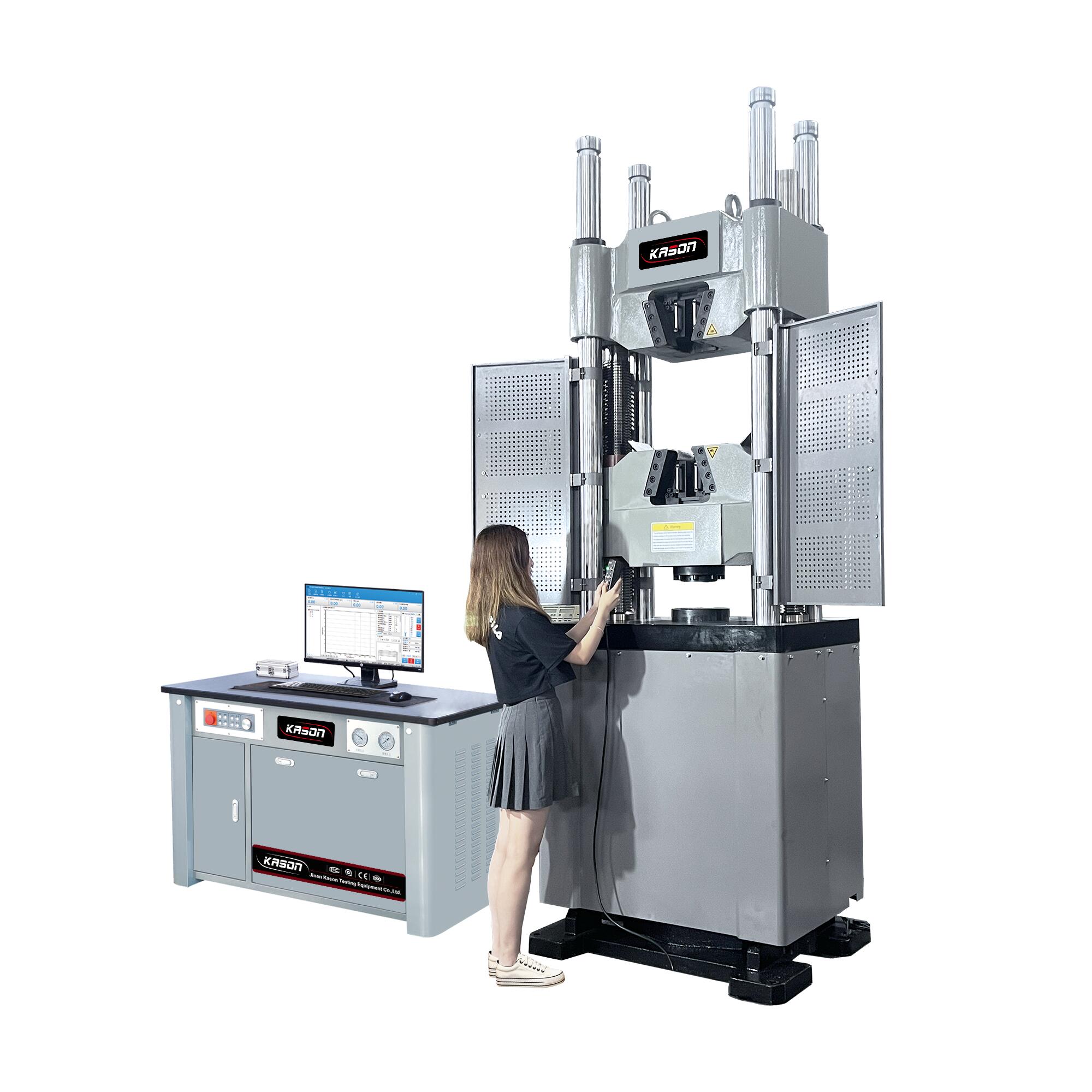

1.Application
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.The choice of test mode tensile / compressive or tensile bending can be performed without switching devices, increasing the productivity.
3.Specifications
Model |
WEW-100D |
WEW-300D | WEW-600D | WEW-1000D | WEW-2000D |
Number of Screw drivers | 4 | ||||
Max. Load (kN) | 100 | 300 | 600 | 1000 | 2000 |
Load Accuracy | <± 1%/ <± 0.5% | ||||
Load Range | 2%?100%FS/ 0.4%~100%FS | ||||
Load Resolution | 1/300000 | ||||
Deformation Measurement Range | 2%~100%FS | ||||
Deformation Accuracy | <± 1% | ||||
Displacement Resolution | 0.01mm | ||||
Displacement Error | <±0.5% | ||||
Max. Piston Stroke(mm) | 200 | 200 | 250 | 250 | 250 |
Max. Tension Test Space(mm) | 780 | 780 | 800 980/1350(PC strand) | 1000 | |
Max. Compression Test Space(mm) 550 | 550 | 550 | 700/1000 | 750 | |
Column Effective Spacing(mm) | 485 | 485 | 500 | 560 | 650 |
Clamping Method | Hydraulic Automatic Clamp |
