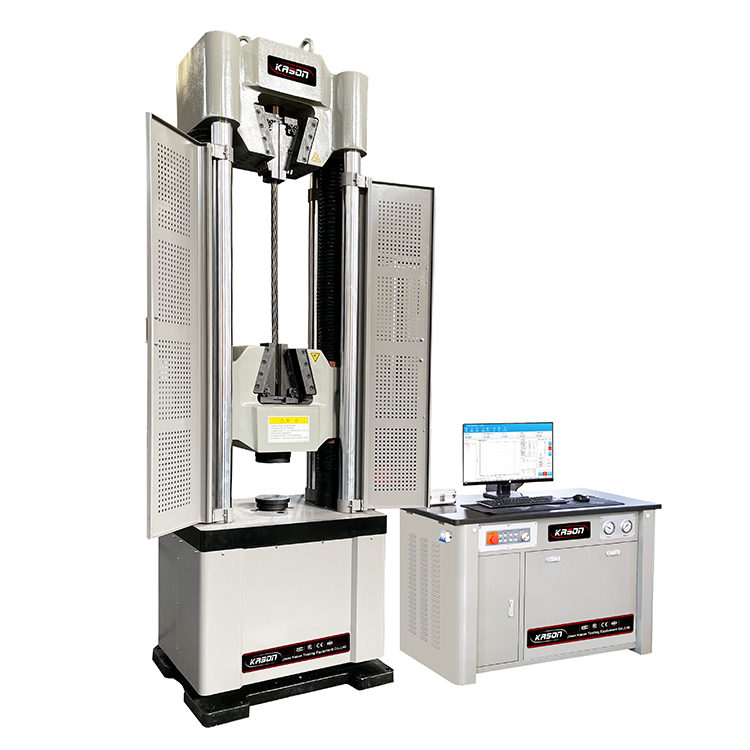

Servo Hydraulic Universal Tensile Testing Machine in 100kn/300kn/500kn/600kn/1000kn/2000kn/5000kn
1.Application
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.The choice of test mode tensile / compressive or tensile bending can be performed without switching devices, increasing the productivity.
2.Standards
Manufactured according to Standards EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide.
3.Specifications
| Model | WAW-100D | WAW-300D | WAW-600D | WAW-1000D | WAW-2000D |
| Number of Screw drivers | 4 | ||||
| Max. Load (kN) | 100 | 300 | 600 | 1000 | 2000 |
| Load Accuracy | <± 1%/ <± 0.5% | ||||
| Load Range | 2%?100%FS/ 0.4%~100%FS | ||||
| Load Resolution | 1/300000 | ||||
| Deformation Measurement Range | 2%~100%FS | ||||
| Max. Piston Stroke(mm) | 200 | 200 | 250 | 250 | 250 |
| Max. Tension Test Space(mm) | 780 | 780 | 800 980/1350(PC strand) | 1000 | |
| Max. Compression Test Space(mm) 550 | 550 | 550 | 700/1000 | 750 | |
| Column Effective Spacing(mm) | 485 | 485 | 500 | 560 | 650 |
| Clamping Method | Hydraulic Automatic Clamp | ||||
