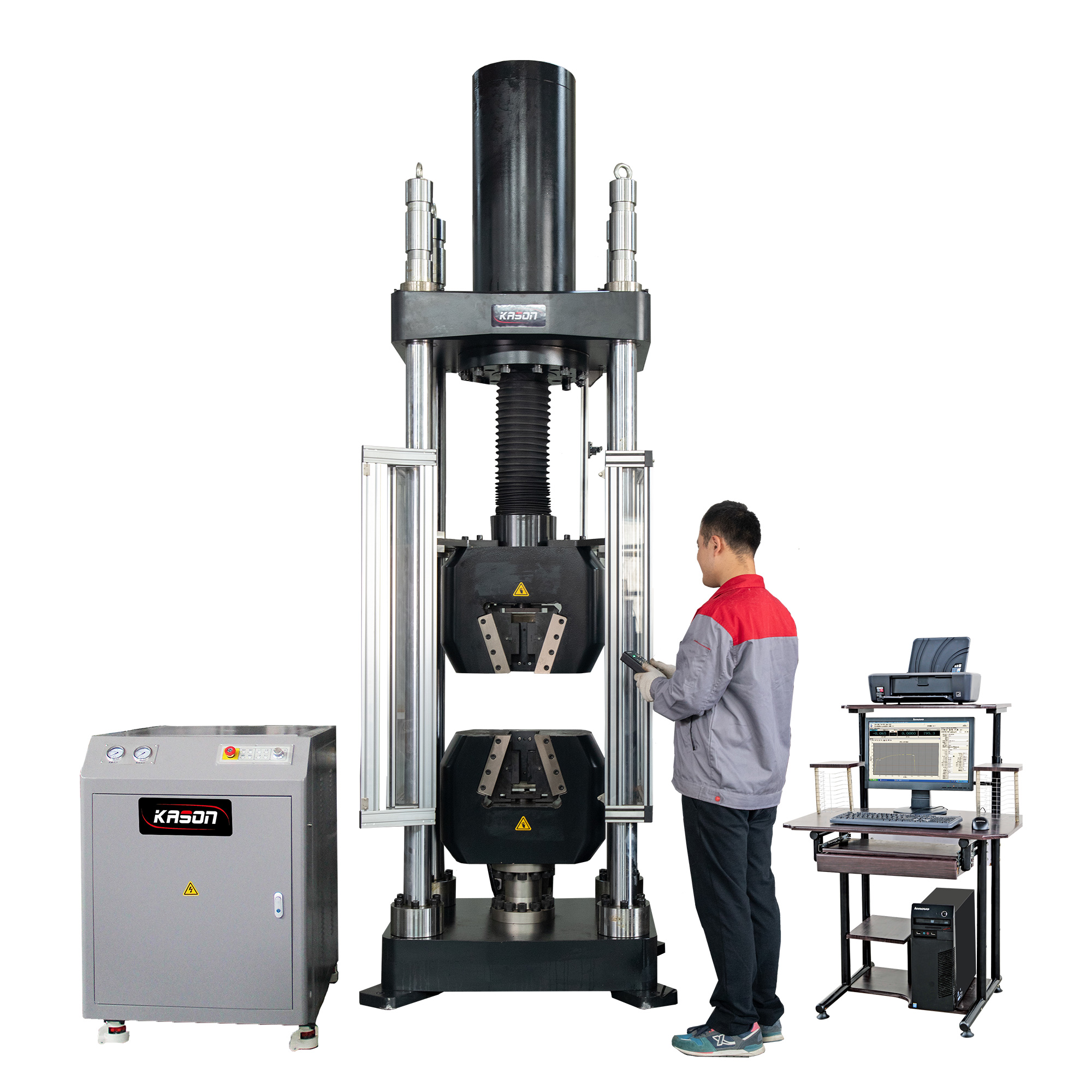

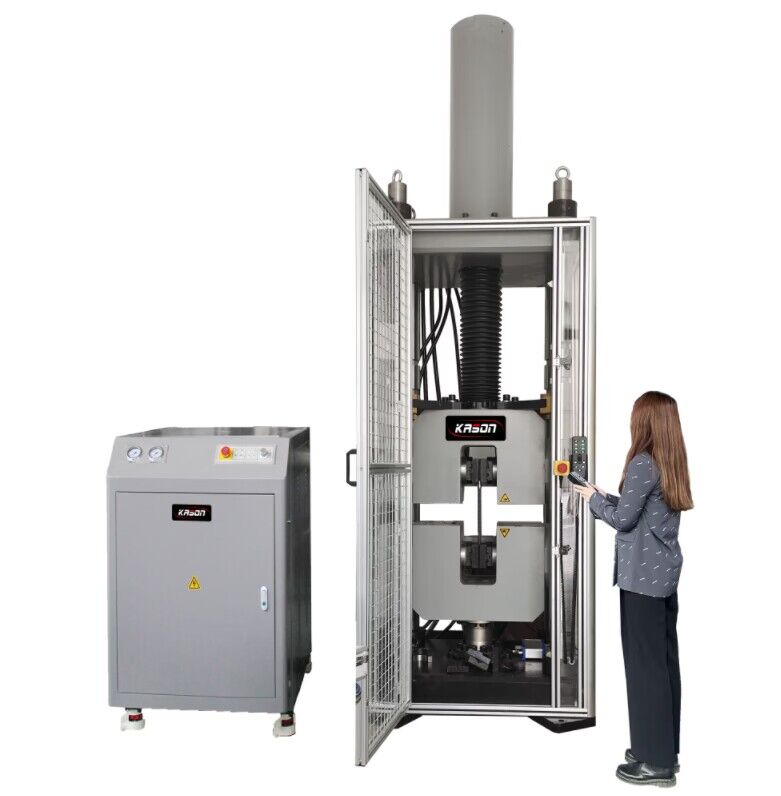

HUT -DJ Electro-hydraulic Single Space Servo Universal Testing Machine
Application:
HUT-DJ Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.
Standards:
1.Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2.Strain measurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3.Also conform to some other standards: ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
|
Model |
HUT-305DJ |
HUT-605DJ |
HUT-106DJ |
HUT-206DJ |
HUT-306DJ |
|
Max. Load capacity(kN) |
300 |
600 |
1000 |
2000 |
3000 |
|
Structure |
Four column |
||||
|
Accuracy of testing load(%) |
Classe 0.5 dal 0.5% del fondo scala ISO-7500 ±0.5 |
||||
|
Accuracy of deformation(%) |
±0.5 |
||||
|
Test Range |
1%-100% |
||||
|
Deformation measurement range |
1%-100% |
||||
|
Posion rising speed（mm/min） |
0-250 |
0-250 |
0-150 |
0-100 |
0-100
|
|
Piston descending speed（mm/min） |
0-250 |
0-250 |
0-180 |
0-100 |
0-100 |
|
Test Force Loading Rate Range |
0.02%-2%FS/s |
||||
|
Host structure |
2 |
4 |
4 |
4 |
4 |
|
Max. Tensile space(mm) |
400 |
580 |
1000 |
700 |
800 |
|
Max. Compression space(mm) |
300 |
460 |
520 |
650 |
520 |
|
Actuator stroke(mm) |
370 |
580 |
650 |
700 |
800 |
|
Max. Loading speed(mm/min) |
100 |
100 |
75 |
50 |
100 |
|
Distance between columns(mm) |
490x330 |
490x330 |
660x400 |
810x490 |
900x540 |
|
Clamping method |
Hydraulic Automatic Clamp With Wedge or side action grip
|
||||
|
Round insert(mm) |
Ф10-32 |
Ф10-40 |
Ф13-Ф26；Ф26-Ф40 |
Ф15-Ф40; Ф40-Ф70 |
Ф1570 |
|
Flat insert(mm) |
2-25 |
2-30 |
2-40；40-60 |
10-40;40-70 |
10-70 |
|
Compression platens(mm) |
240*240 |
240*240 |
240*240 |
240*240 |
240*240 |
|
Dimensions of load frame(mm) |
880x630x2980 |
880x630x2980 |
980x720x3530 |
1505x1186x4178 |
|
|
Weight(kg) |
1500 |
3000 |
5000 |
8500 |
11500 |
