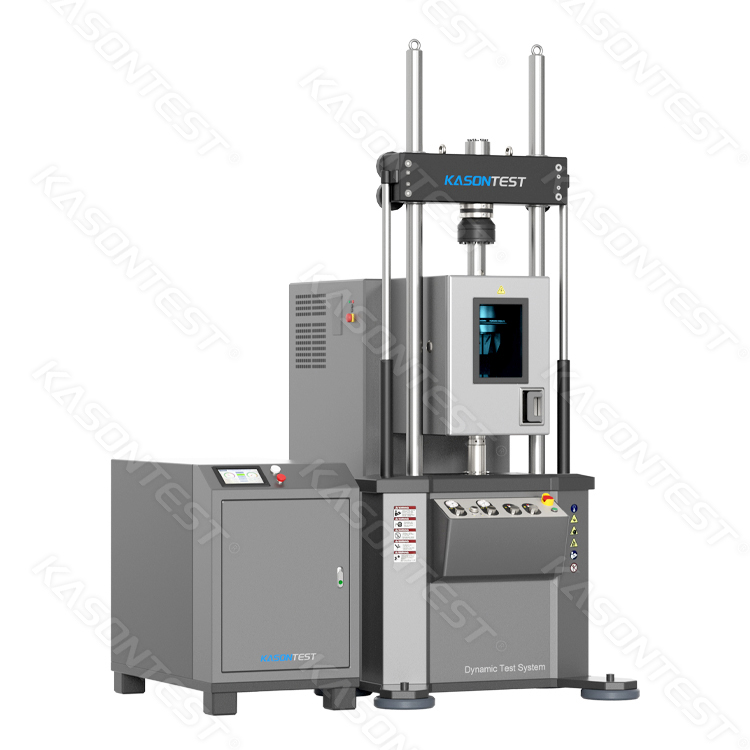

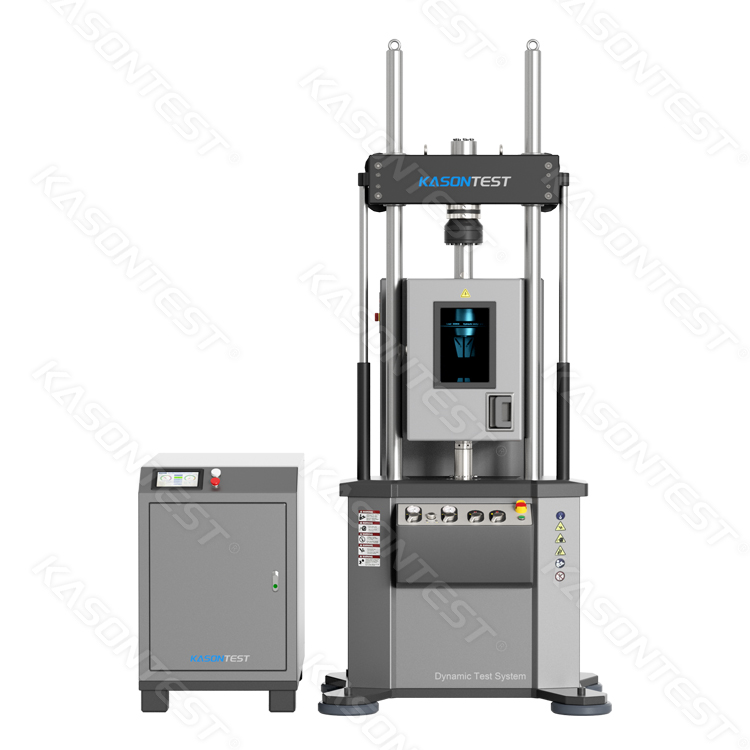

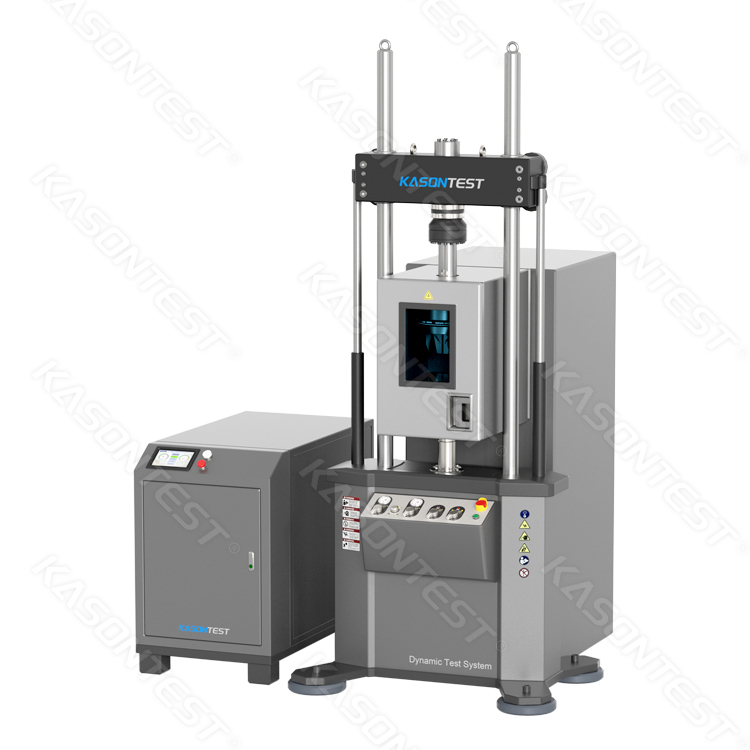

KASON HDT-BC High and Low Temperature Dynamic testing Systems
Application:
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
Specifications
|
MODEL |
KASON- HDT254BC |
KASON- HDT504BC |
KASON- HDT105BC |
KASON- HDT255BC |
KASON- HDT505BC |
|
Maximum dynamic force (kN) |
±25 |
±50 |
±100 |
±250 |
±500 |
|
Maximum static force (kN) |
25 |
50 |
100 |
250 |
500 |
|
Load range |
2%-100%FS |
||||
|
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
||||
|
Actuator dynamic stroke(mm) |
150 |
||||
|
Displacement measuring range (mm) |
0～150(±75) |
||||
|
Displacement measurement resolution(mm) |
0.001 |
||||
|
Deformation indication relative error |
±0.5% |
||||
|
Sine wave test Frequency (Hz) |
Standard: 0.01～30; Optional: 0.01～50; 0.01～100(Static pressure support cylinder) |
||||
|
Vertical test space(mm） |
800 |
800 |
800 |
1000 |
1000 |
|
Working table height (mm) |
825 |
825 |
825 |
825 |
825 |
|
Effective distance between columns(mm) |
545 |
545 |
545 |
635 |
635 |
|
Column diameter(mm) |
80 |
76.2 |
|||
|
Main frame stiffness |
3×108 |
||||
|
Machine frame sizes(mm) |
1010X720X2900 |
1148X795X3252 |
|||
|
Machine frame weight(KG) |
1200 |
1200 |
|||
|
Coaxiality of hydraulic fixture |
5% |
||||
|
Power supply |
AC 380V± 10%, 50Hz |
||||
|
Temperature range |
-60℃～+300℃; -70℃～+300℃;-100℃～+300℃ |
||||
