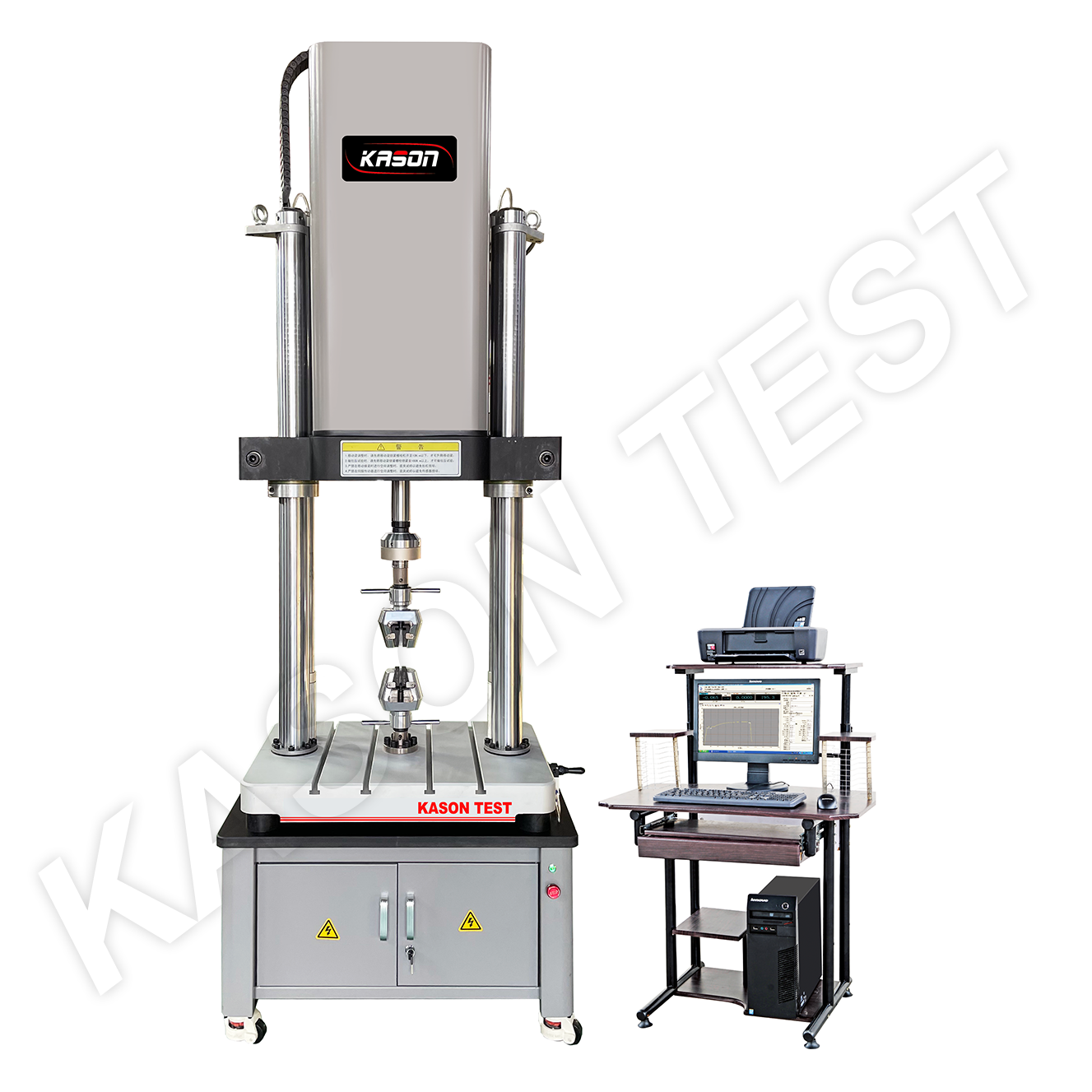

Electric dynamic compression tensile Fatigue Testing Machine
Application: It is mainly used to detect the static and dynamic mechanical properties of tiny material samples, parts and components, and elastomers. It can realize fatigue tests such as tension, compression, and bending, as well as high-cycle fatigue, low-cycle fatigue, crack extension, fracture toughness and other tests, and realize various waveform outputs such as sine wave, triangle wave, and square wave. Equipped with high-temperature furnace, high and low temperature box and corrosion box, it can realize mechanical testing in different environments.
Specification:
|
MODEL |
EP1 |
EP2 |
EP3 |
EP5 |
EP10 |
EP20 |
EP30 |
EP50 |
|
Max. Test Force |
±1000N |
±2000N |
±3000N |
±5000N |
±10000N |
±20000N |
±30000N |
±50000N |
|
Test Force Measuring Range |
Dynamic 1%~100%FS, Static 0.5%~100%FS |
|||||||
|
Accuracy of Test Force Measurement |
Dynamic ±1%, Static ±0.5% |
|||||||
|
Test Force Resolution |
1/500000 yards |
|||||||
|
Displacement Measuring Range |
150mm (±75mm) |
|||||||
|
Displacement Resolution |
0.001mm |
|||||||
|
Displacement Indication Accuracy |
Indication accuracy from 1% within ±0.5%FS |
|||||||
|
Deformation |
Indication accuracy from 2% within ±0.5% |
|||||||
|
Test Frequency Range |
0.01–10Hz |
|||||||
|
Load Frame |
Two-column platform type, manual locking |
|||||||
|
Effective Distance Between Columns |
475mm |
475mm |
475mm |
500mm |
500mm |
500mm |
500mm |
500mm |
|
Column Diameter |
70mm |
|||||||
|
Frame Stiffness |
3 × 10⁸ N/m |
|||||||
|
Installation Type of Electric Control System |
Top-mounted |
|||||||
|
Crosshead Lifting |
Electric lifting |
|||||||
|
Main Waveforms |
Sine wave, pulse wave, square wave, sawtooth wave, random wave |
|||||||
|
Fixtures and Accessories |
Standard compression fixture expandable, for stretching, bending, shearing, etc. (optional) |
|||||||
