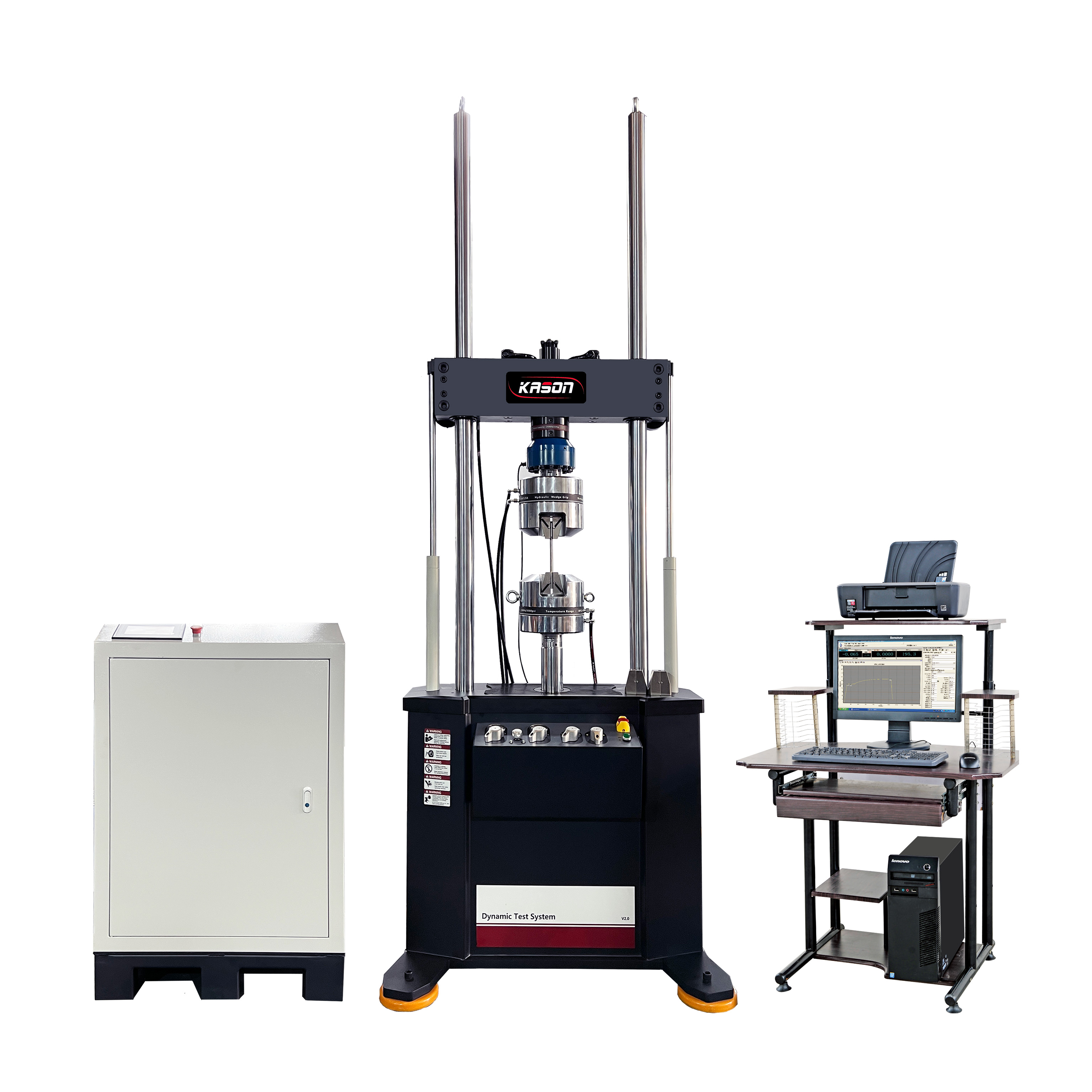

KASON HDT-B differential bearing two-channel dynamic simulation testing machine
The testing machine is mainly used to simulate the actual working state of the differential bearing. Through bringing the radial bearing spectrum, the axial load spectrum, the rotational speed variation spectrum, the velocity spectrum and the load spectrum on testing machine, testing machine is used by programmed instruction to complete the durability test of the differential bearing.
Main specifications, technical parameters and technical indicators:|
MODEL |
KASON- HDT254B |
KASON- HDT504B |
KASON- HDT105B |
KASON- HDT255B |
KASON- HDT505B |
|
Maximum dynamic force (kN) |
±25 |
±50 |
±100 |
±250 |
±500 |
|
Maximum static force (kN) |
25 |
50 |
100 |
250 |
500 |
|
Load range |
2%-100%FS |
||||
|
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
||||
|
Actuator dynamic stroke(mm) |
150 |
||||
|
Displacement measuring range (mm) |
0～150(±75) |
||||
|
Displacement measurement resolution(mm) |
0.001 |
||||
|
Deformation indication relative error |
±0.5% |
||||
|
Standard: 0.01～30; Optional: 0.01～50; 0.01～100(Static pressure support cylinder) |
|||||
|
Vertical test space(mm） |
800 |
800 |
800 |
1000 |
1000 |
|
Working table height (mm) |
825 |
825 |
825 |
825 |
825 |
|
Effective distance between columns(mm) |
545 |
545 |
545 |
635 |
635 |
|
Column diameter(mm) |
80 |
76.2 |
|||
|
Main frame stiffness |
3×108 |
||||
|
Machine frame sizes(mm) |
1010X720X2900 |
1148X795X3252 |
|||
|
Machine frame weight(KG) |
1200 |
1200 |
|||
|
Coaxiality of hydraulic fixture |
5% |
||||
|
Power supply |
AC 380V± 10%, 50Hz |
||||
