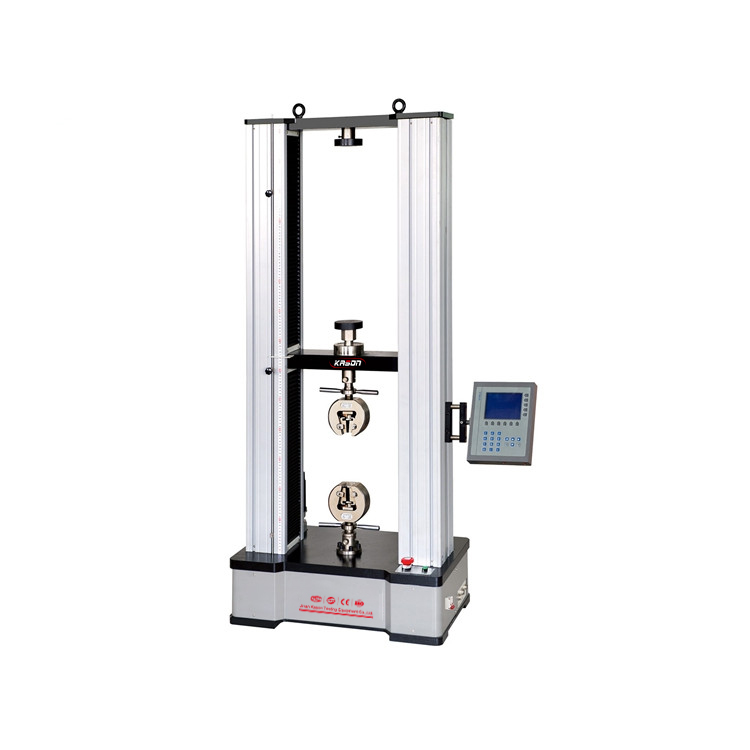

WDS-10/20/30/50 Digital Display Electronic Universal Testing Machine
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:
ASTM, ISO, DIN, GB and other international standards.
Specifications:
| Items | Model | ||||
| WDS-10 | WDS-20 | WDS-30 | WDS-50 | WDS-100 | |
| Structure | Column and 2 Ball Screw | ||||
| Max. Load(kN) | 10 | 20 | 30 | 50 | 100 |
| Tensile space(mm) | 670 | 770 | 650 | ||
| Compression space(mm) | 900 | 1000 | |||
| Effective test width | 450 | 550 | |||
| Size(mm) | 850 * 590 * 1750 | 840*570*1850 | 950*660*2000 | ||
| Host Weight (kG) | 370 | 420 | 680 | ||
| Power Supply | 220V/50-60Hz | ||||
