Application

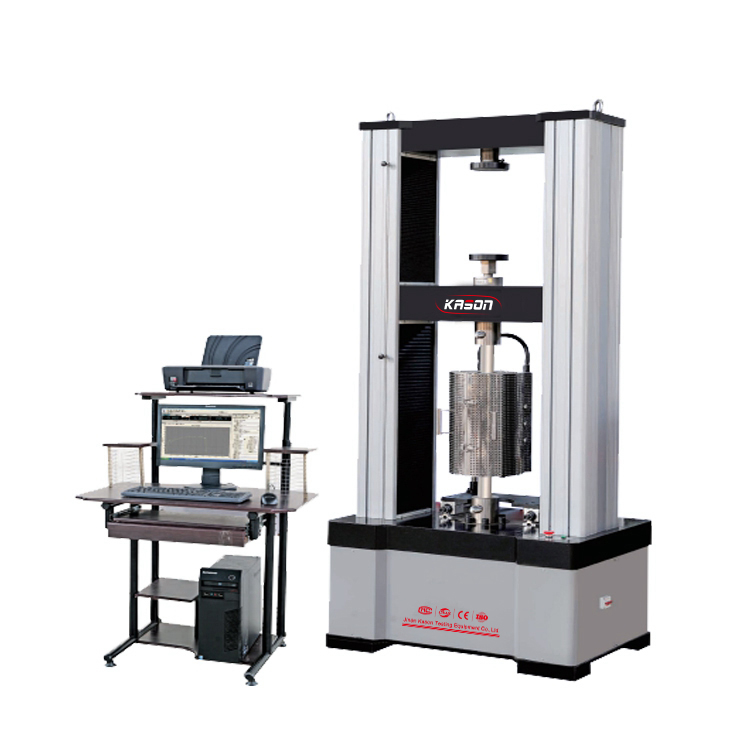

This series testing machines is mainly suitable for rubber, plastic profile, plastic pipe, sheet, sheet, film, wire and cable, waterproof coil, wire and other materials in high temperature or low temperature environment, tensile, compression, bending, peeling, tearing, shear and other mechanical properties of the test; It is very convenient for users to carry out research and development, quality control work, and is an ideal testing instrument for industrial and mining enterprises, commodity inspection arbitration, scientific research units, colleges and universities, engineering quality departments.
Specifications
Load cell | ||
Capacity | kN | 20 |
Calibration standard | - | 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
Accuracy grade | % | 0.5 of reading |
Testing load accuracy | % | |
Deformation accuracy | % | |
Displacement accuracy | % | |
Position resolution | μm | 0.025 |
Force range | FS | 0.4%-100% |
Force resolution | FS | Capacity/500, 000(fully auto scaling of single measurement range) |
Force accuracy | % | 0.5 of reading |
Controller | ||
Sampling frequency | Hz | Up to 1000 |
Closed loop control frequency | Hz | Up to 1000 |
Software | English | |
Load resolution | kN | Capacity/500, 000(fully auto scaling of single measurement range) |
Speed | ||
Testing Speed | mm/min | 0.001-1000 |
Speed accuracy | % | ±0.5 of set speed |
Main frame | ||
Frame type | - | Dual test space |
Test width | mm | 450 |
Crosshead Travel | mm | 1100 |
Max. Tensile Testing Space | mm | 770 |
Max. Compression Testing Space | mm | 1000 |
Power supply | V/Hz | 220V-50/60 |
Overall Dimensions (L*W*H) | mm | 840 x 570 x 1850 |
Net Weight | kG | 420 |
Furnace:
MODEL
KS-1100G
KS-1200G
Operating temperature
300~1100℃
300~1200℃
Long-term operating temperature
1000℃
1200℃
Heating element material
FeCrAl resistance wire
Heating body diameter
Φ1.2mm
φ1.5mm
Temperature measuring element
K thermocouple (including special compensation wire)
S thermocouple (including special compensation wire)
Number of heating body segments
3
Number of temperature measuring points
3
Temperature sensitivity
0.1℃
Temperature measurement accuracy
0.20%
Heating zone length
100mm
150mm
Temperature accuracy
Test temperature(℃)
temperature departure/ thermal gradient
300-600
±3/ 3
600-900
±3/ 3
>900
±3/ 3
Furnace inner size
Diameter* length:φ 90*300mm/ φ 90×380mm
Dimensions
Diameter* length:φ320*380mm/ φ320×460
Tensile fixture
M12, M14, M16, M20; 1~4mm,4~8mm According to order
Operating Voltage
3 piece of smart meter
Mains power
Limit power 5KW when heating up
