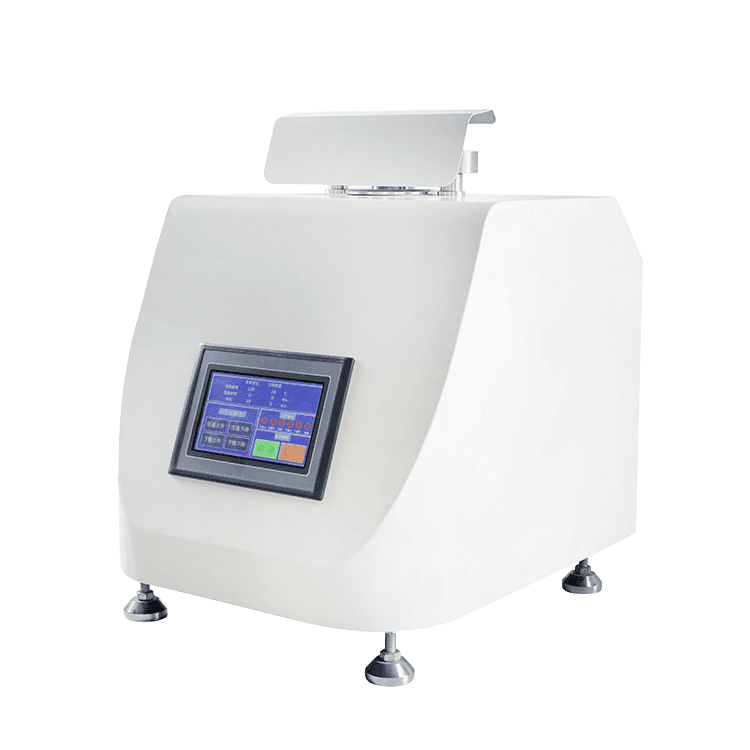

METPRESS-6P Metallographic automatic pneumatic hot mounting machine

1、Applications

METPRESS-6P automatic mold metallographic and lithographic sample setting machine, is a process before sample setting, grinding and polishing, for small and not changing hands or irregular metallography; Lithofacies samples were inlaid. After Mosaic, the sample is convenient for grinding and polishing operation and is conducive to the normal observation of the structure of the material under the metallographic microscope.

2、Main Technical Parameters

Specimen pressing specification：ф30mm

Heater： 220V，1000W

Temperature setting range：0-200℃

Cooling temperature range：0-999min

Soak Time ：0-99min

Air pressure requirement ：0.4-0.7Mpa，

Total power of supply：1000W .

Cooling method: water cooling

Boundary dimension：435×520×605mm

Net weight：77Kg
