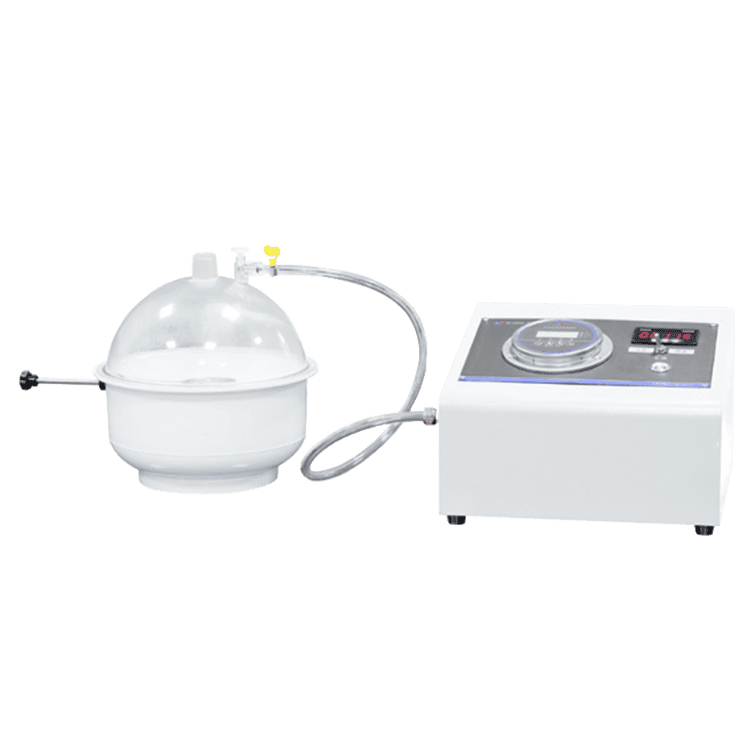

METPRESS-VM30/60 Vacuum Mounting Press
1、Introduction
METPRESS-VM30/60 The fully automatic vacuum cold mounting machine uses PLC control, a high-strength vacuum chamber and a built-in vacuum pump to complete the entire mounting process of vacuuming, maintaining vacuum, and deflating with one click.
Sample mounting eliminates the air in the sample and the cold mounting material, and the liquid mounting material fills the gaps in the sample, eliminating the gap between the sample and the mounting material, thereby achieving a tight combination of the sample and the mounting material. Samples are also well protected and supported during grinding and polishing.
2、Main Specifications
|
Name |
Specification |
|
Number of mounted samples |
>10 pieces (for inlay molds with a diameter of 30mm) |
|
Vacuum chamber size |
300Lx 300W x 300Hmm |
|
Maximum vacuum degree |
-0.06MPa(-60KPa) |
|
Pumping time |
less than 1 minute |
|
Mold |
Suitable for molds of various shapes: Diameter 20, 40, 50mm, or rectangular mold, or disposable mold |
|
Dimensions |
Vacuum container: 300Lx 300W x 300H mm Main cabinet: L230×W300×H230mm |
|
Power supply |
220V, 50/60Hz, 200W |
|
Weight |
Vacuum chamber: 1.15kg Main cabinet: 10Kg |
