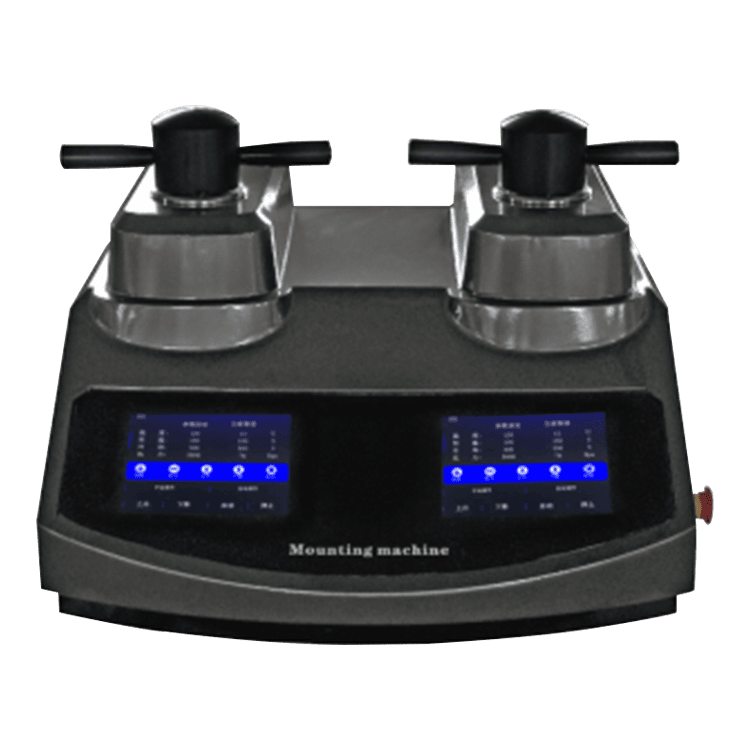

METPRESS-5AS Metallographic automatic rapid hot mounting machine
1、Application：
The METPRESS-5AS mounting machine is used to mount metallographic and petrographic samples that are tiny, difficult to hold or irregular before grinding and polishing.
2、Technical Parameters
|
Model |
METPRESS-5AS |
|
The Sample Diameter |
ф22mm, ф30mm, ф45mm(choose 2) |
|
Sample preparation pressure |
0-10MPa |
|
Sample preparation time |
5-6min |
|
Sample preparation temperature |
35~300℃ |
|
Cooling method |
Water Cooling |
|
Maximum Consumption |
2600W*2 |
|
Power Supply |
220V, 50Hz |
|
Dimension |
650*700*500mm |
|
Package Size |
835*715*560mm |
|
Net Weight |
100kgs |
|
Gross Weight |
111.5kgs |
