1. Application:

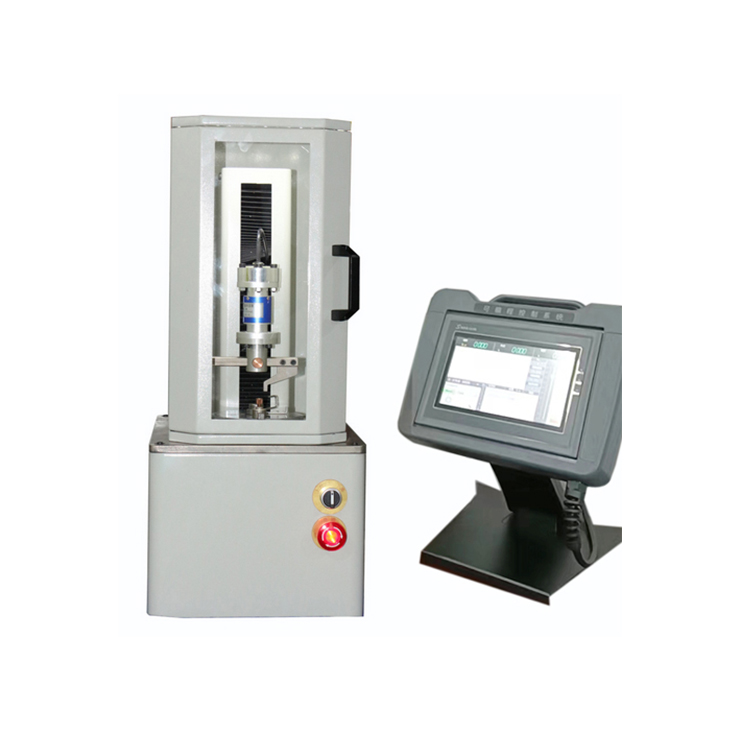

The vertical automatic digital display touch screen spring torsion testing machine mainly does torsiontestonvarious torsion springs and spiral coil springs. Measuring the torque of the spring under a certainAngle,ormeasuring the Angle of the spring under a certain torque, torsion spring stiffness test, can alsobeusedforother elastic components and friction mechanism torsion performance test, the spring testing machineismainlyused in spring manufacturers, electrical manufacturers, power machinery factories, colleges anduniversitiesand related research units. It can automatically complete the whole cycle test environment of thespring, andcan also determine a certain parameter of the spring separately. Users can adjust the test programaccordingtoactual needs in use, and the operation is very convenient
2. Specification:
Model |
KS-TNS2000 |
Style |
Precision desktop |
Maximum test force |
2000N.mm |
Test force resolution |
0.01N·mm |
Effective measurement range |
1%-100%FS |
Minimum reading value of torsion Angle |
0.1° |
Test force accuracy |
±1% |
Angle measurement accuracy |
±1% |
Distance between afterplate and torque rod |
0 ~ 90mm |
Testing machine level |
Level 1 |
