The main purpose:

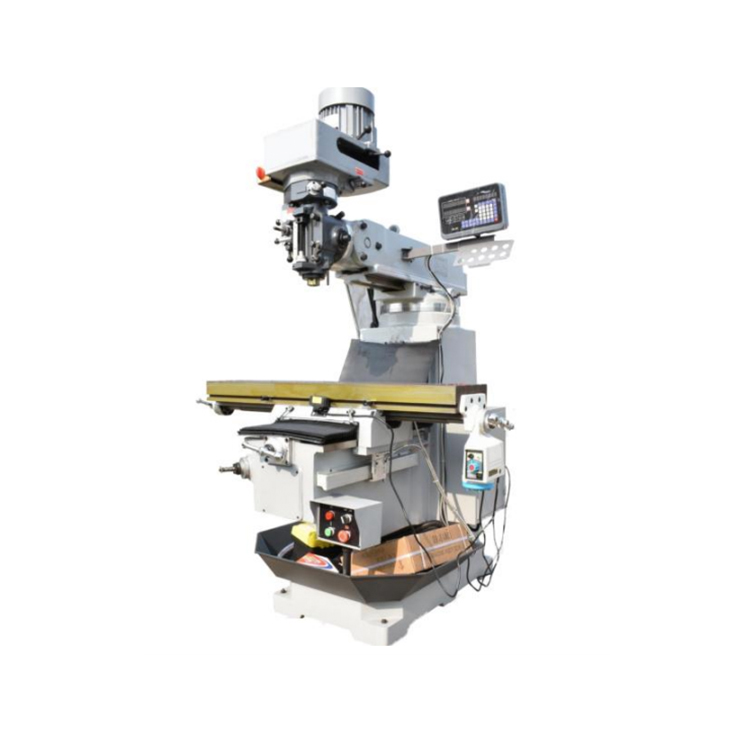

This machine tool is a multi-functional turret milling machine, which can realize drilling, tapping, boring, and vertical milling. It can process planes, grooves, inclined surfaces, forming surfaces, splines, gears and other parts, especially for tools, molds, Manufacturing of fixtures. Another name for turret milling: turret milling machine, rocker milling machine, rocker milling, turret milling machine is a type of vertical milling machine.
Technology parameter:
Item |
Parameter |
Spindle speed |
80-4550 (16 speed) |
Spindle taper hole |
R8 (optional NT40) |
Main motor power |
2.2KW |
Spindle tube stroke |
127mm |
X/Y/Z axis maximum travel |
800 * 420 *400mm |
Working desk |
1270*254mm |
Distance from vertical spindle to worktable |
0-450 |
Distance from the center of the vertical spindle to the column |
130-620 |
The milling head rotates left and right |
90° |
The milling head rotates back and forth |
45° |
T-slot size |
3*16* 58mm |
