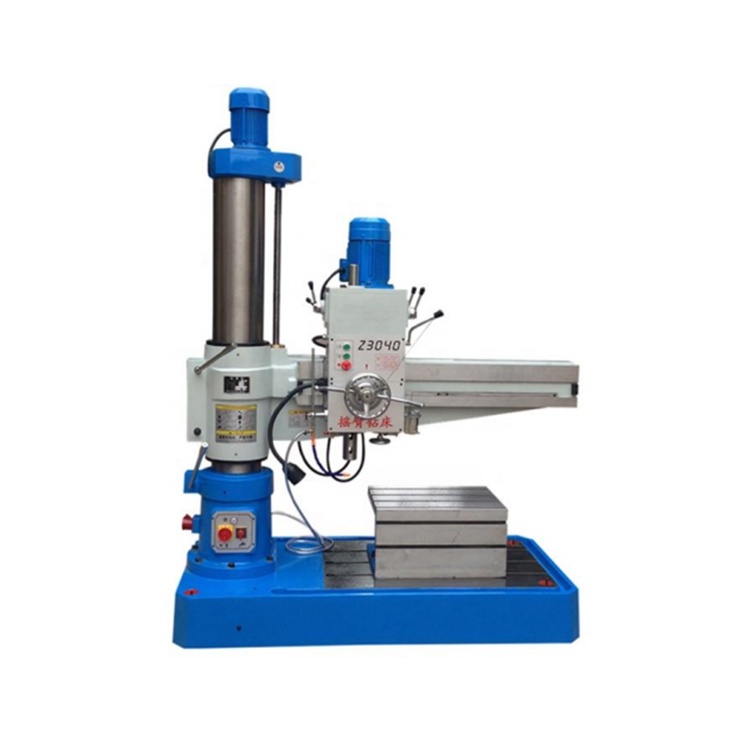

Z3050X10 Radial Drilling Machine
1.Application:
HST-Z3050X16/1 Radial Drilling Machine is apply for the middle and big workpiece to drill hole,enlarge hole, reaming , mill surface,tapping and etc. It also can boring hole on the condition of good device. Z3050x16 radial drilling machine is improved on the based of new type machines. It is used widely.
2.Specification:
|
Maximum Drill Diameter |
50mm |
|
Distance from spindle axis to column surface |
350-1600mm |
|
Traverse of spindle box |
1250mm |
|
Distance from spindle end to table surface |
320-1220mm |
|
Lifting traverse of rocker arm |
580mm |
|
Lifting speed of rocker arm |
0.02m/second |
|
Rotary angle of rocker arm |
360° |
|
Spindle taper |
MT5 |
|
Spindle speed range |
25-2000r/min |
