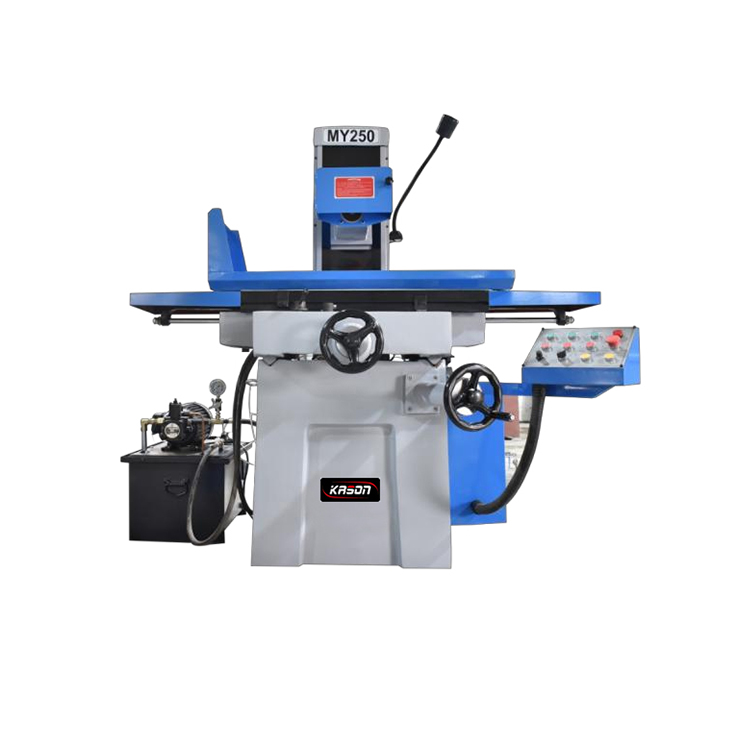

MY250 Horizontal Shaft & Rectangular Table Surface Grinder

1. Applications
The machine is mainly used for grinding steel, cast iron and non-ferrous metal around the wheel. According to the material and shape of the work-piece, different clamps and positioning methods canbe adopted. General flat surface can adopt electromagnetic chuck or directly fastened to the work table for grinding; Plane, right angle surface, any angle, cylindrical end face, etc., can be grinding onthe fixture (fixture made by customer).
2. Specification
Working surface size of worktable: 500*250 mm
Longitudinal movement of worktable: 550 mm
Horizontal movement of worktable: 270 mm
Maximum distance from table surface to spindle center: 420 mm (with disk)
Maximum capacity of worktable 100 kg (with disk)
Worktable T-slot: 14 mm*1
Worktable speed: 7-25 m/min
