Application:

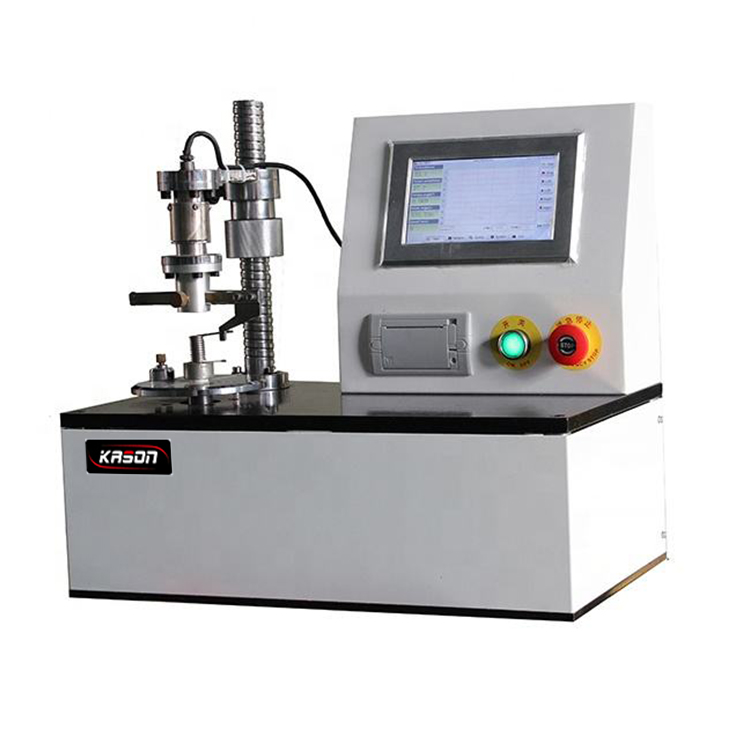

This series digital torsion spring tester is a kind of intelligent multifunctional measuring instrument used for testing and inspection of torsion spring
Main specification:
Model |
TNS-50 |
TNS-100 |
TNS-200 |
TNS-500 |
TNS-1000 |
TNS-2000 |
TNS-5000 |
|
Max Test force |
50 N/mm |
100 N/mm |
200 N/mm |
500 N/mm |
1000 N/mm |
2000 N/mm |
5000 N/mm |
|
Test range |
2%-100% |
|||||||
Test machine class |
1 class |
|||||||
Test force Min reading value |
0.1 Nmm |
|||||||
Angle min reading value |
0.1° |
|||||||
Torque indicate relative error |
≤ ±1% |
|||||||
Spring test length |
0-70mm |
|||||||
Deformation error |
≤±(50+0.15l) |
|||||||
Test angle range |
0-±9999.9 |
|||||||
Torque dish diam |
100mm |
180mm |
||||||
Loading method |
Manual Loading |
|||||||
Power supply |
AC 220V/50Hz |
