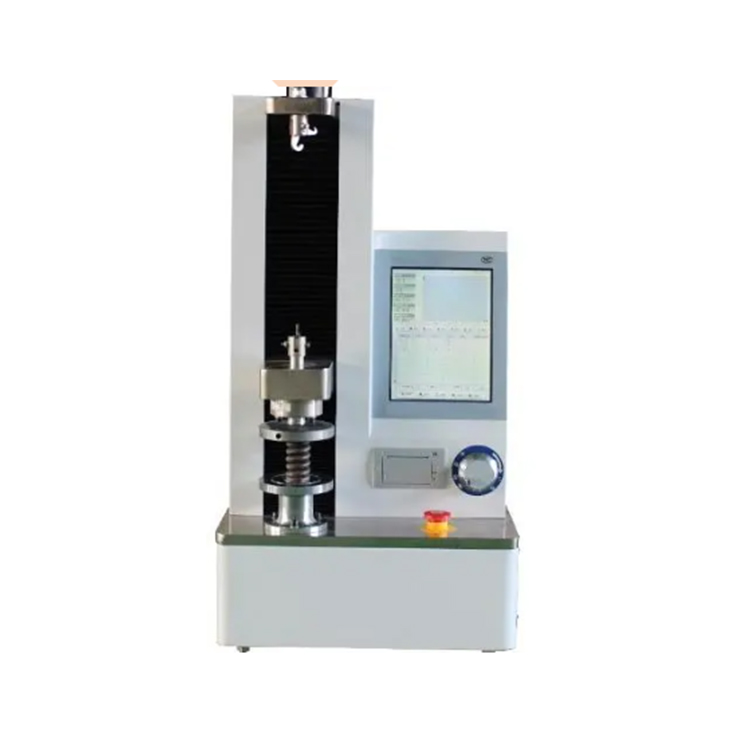

KASON-T50/100/200/500/1000/2000N Touch Screen Spring Tensile and Compression Testing Machine
1.Application
This testing machine is mainly used to measure the tensile test and compression test of various coil springs. Itcan test both the spring load under a certain deformation and the spring deformation under a certainload. Mainlyused in spring manufacturers, low-voltage electrical appliances, machinery, universities and researchlaboratories.
2. Specification
|
MODEL |
KS-T500 |
KS-T1000 |
KS-T2000 |
KS-T3000 |
KS-T5000 |
|
Capacity |
500N |
1000N |
2000N |
3000N |
5000N |
|
Testing machine grade |
Class 1 |
||||
|
Display type |
LCD display with touch screen |
||||
|
Measuring range |
1%- 100% |
||||
|
Load resolution |
100N/0.01N, 1000N-2000N/0. 1N |
||||
|
Relative error of zero point |
±0.1% |
||||
|
Relative error of test force indicating value |
±1.0% |
||||
|
Resolution of displacement |
0.001mm |
||||
|
Displacement indication error (micron) |
≤±（50+0. 15l） |
||||
|
Test space |
300mm/500mm/600mm |
||||
|
Plate |
100mm |
||||
