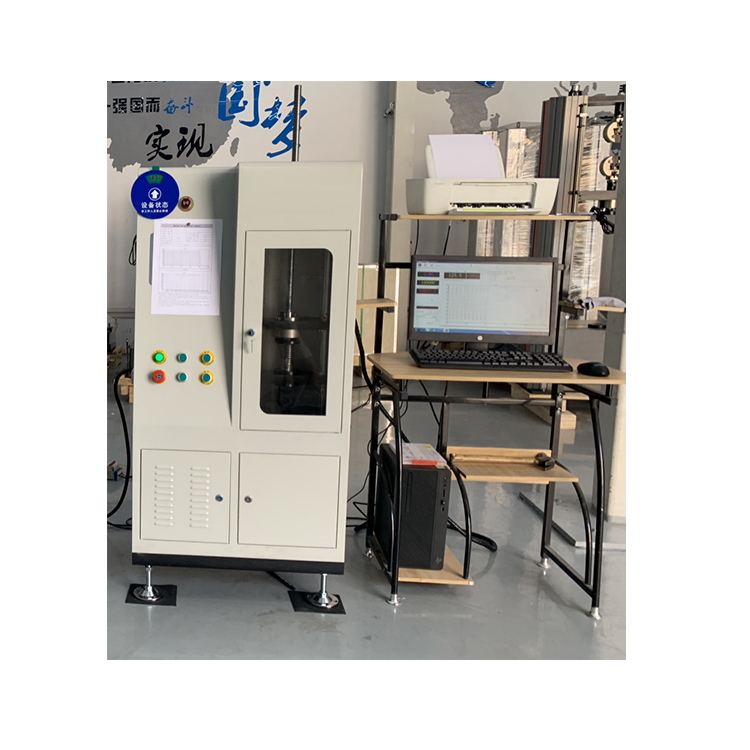

HTPL-1000W Computer Control Spring Tension and Compression Fatigue Testing Machine
1. Application:
The Computer Control Spring Tension and Compression Fatigue Testing Machine is composedof adrivesystem, a transmission system, an amplitude adjustment system, a computer-controlled display system, etc.Itis suitable for fatigue life testing of various elastic components, springs, compression springs, etc. The microcomputer-controlled spring fatigue testing machine is operated by a frequency converter tocontrolthe motor. The eccentric device drives the connecting rod to raise and lower the reciprocating pressureplatetocomplete the reciprocating compression fatigue test of the sample. Functions such as adjustablefrequency,setting of test times, mechanically adjustable amplitude, sinusoidal curve display, force attenuationandshutdown can be realized!
2. Specification:
|
Model |
HTPL-1000W |
|
Maximum test force
|
1000N (maximum load)
|
|
Workstation |
1 |
|
Test force resolution |
0.1N |
|
Amplitude |
(Deformation: ±50mm (i.e. 100mm adjustable) |
|
Frequency |
0.5-5Hz |
|
Spring station |
1 (can be customized according to customer requirements) |
|
Counter capacity |
9*109 times |
|
Test space |
170mm |
|
Test width |
80mm (can be customized) |
|
Main motor power |
1.5KW |
|
Display |
Computer screen display |
