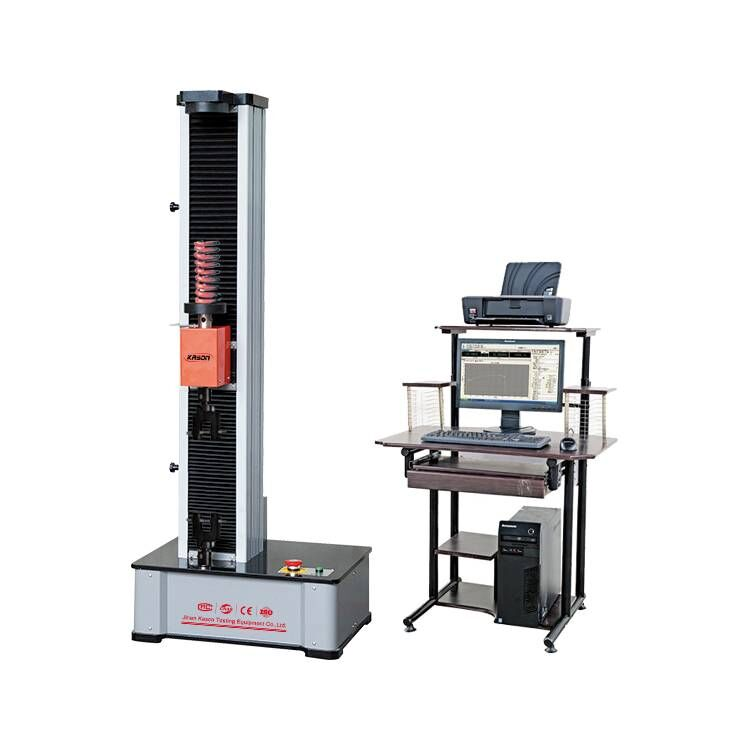

100-5KN Single Colum Automatic Spring Tensile and Compression Testing Machine
Application
This series testing machine is mainly used for tension spring, compression spring, saucer reed, tower spring, leaf spring, clip spring, flat spring, cpmposite spring,gas spring, mould spring, deformed spring and other precision spring tensile, compression, disp lacement and rigidity test and analysis.
Standards
GB/T, ASTM, DIN, JIS and other international standards
Main Technical Parameters
|
Model |
TLS-01 TLW-01 |
TLS-02 TLW-02 |
TLS-05 TLW-05 |
TLS-1 TLW-1 |
TLS-2 TLW-2 |
TLS-3 TLW-3 |
TLS-5 TLW-5 |
|
Structure |
Single Colum Type Double space models |
||||||
|
Control Method |
Digital display/computer control |
||||||
|
Load Accuracy |
Class1/Class0.5 |
||||||
|
Load Range |
2%～100%F·S |
||||||
|
Test force relative error value |
≤±1%% |
||||||
|
Displacement relative error value |
≤±1% |
||||||
|
Displacement display resolution |
0.01mm |
||||||
|
Deformation indication error |
≤±（50+0.15L）um |
||||||
|
Speed adjustment range |
0.01-500mm/min (stepless speed) |
||||||
|
Speed relative error |
≤±1% |
||||||
|
Tensile test space |
Standard 600mm Heightening 800mm |
||||||
|
Compression test space |
Standard 600mm Heightening 800mm |
||||||
