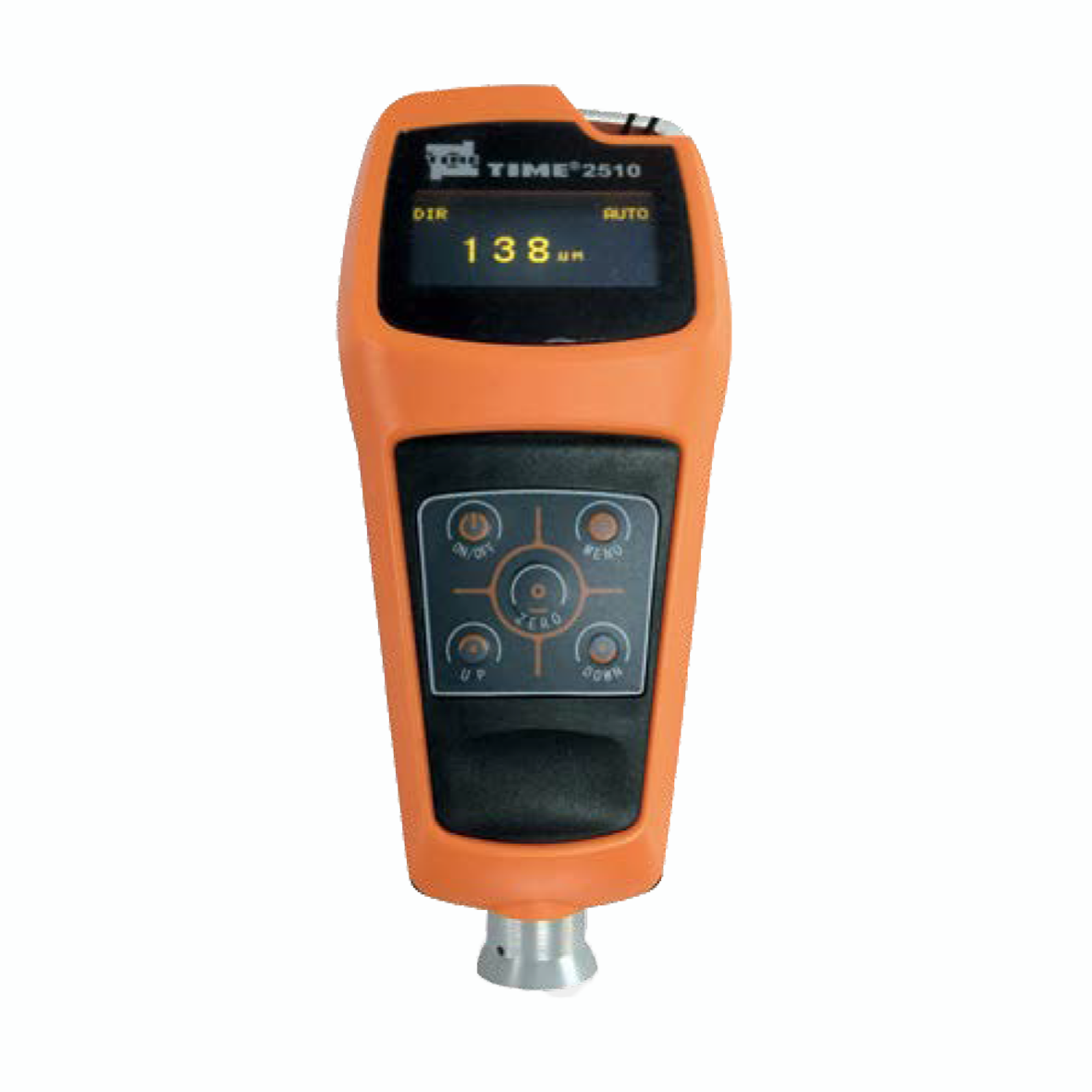

TIME®2510 Coating Thickness Gauge

1. Features
-Two principle of operation are adopted: magnetic inductlon (ferrous) and eddy current (non.ferrous) to take non-destructive measurements.
-Zero point calibration and two-point calibratlon to correct the syster ertor of the probe。
-Features two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE
-Statistics include the mean, maxlmum, minimum, test numbers and standard deviation
-Automatic recognition of substrate.
­-Memory of 600 data
­-Deletion of current data, calibrated data, limit data and all data stored.
-Low battery indication and error alarm
-Buzz during operation for indication
-Auto or manual shutdown

2. Specification
Probe types: F
Working principle: Magnetic induction
Measuring range: 0-1250 um
Minimum resolution: 0.1um
Zero pointcalibration: +-(3%H+1)um
Two points calibration: +-{(1-3)%H+1}um
Min. curvature radius: Convexity 1.5 mm
Min. area diameter: 7mm
Critical thicknessof the base: 0.5mm
