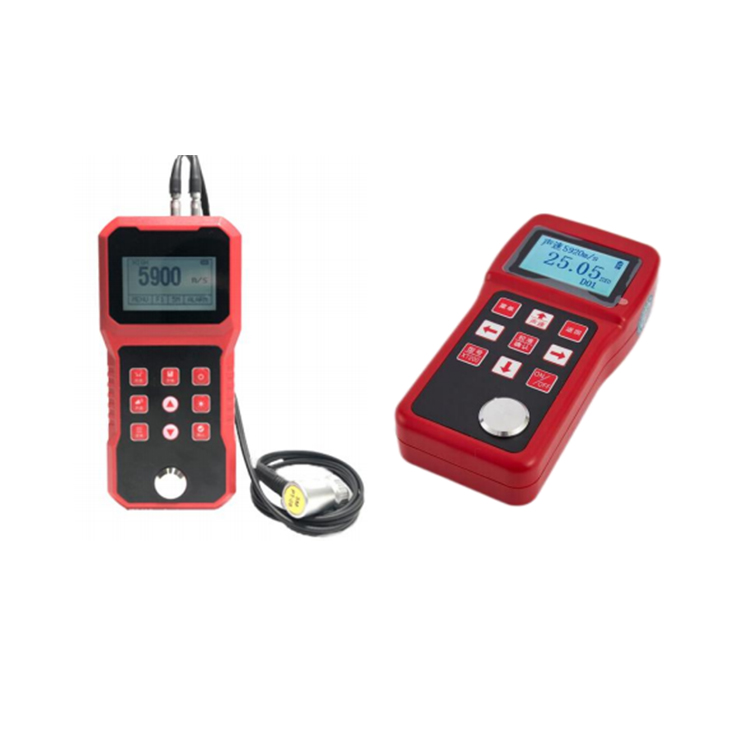

KS2420 Ultrasonic Thickness Gauges
1. Introducion:
Intelligent ultrasonic thickness measuring instrument： This instrument is intelligent this instrument is intelligent ultrasonic thickness measuring instrument, usingthelatest high performance, low power consumption microprocessor technology, based on the principleof ultrasonicmeasurement, can measure the thickness of metal and other materials, and can measure the speedof soundofthe material.It can monitor all kinds of pipelines and pressure vessels in production equipment, andmonitortheirthinning degree after being corroded in the process of use. It can also accurately measure all kinds of platesandall kinds of processed parts.The instrument can be widely used in petroleum, chemical, metallurgy, shipbuilding,aviation, aerospace and other fields.
2. Specification
|
Project |
Performance metrics and features |
|
Display method |
White highlight LED backlight, LCD contrast is adjustable |
|
Measuring range |
0.75～300mm (decided by probe) |
|
Material is the speed of sound |
1000 m/s ~ 9999 m/s |
|
Resolution |
0. 1mm or 0.01mm for choice |
|
Indicate value accuracy error |
±（0.5%H+0.04）mm H is the actual thickness of the subject object |
|
Measurement cycle |
4 times per second for single point measurement,Scan mode for 20 times /second |
|
Storage |
It can store 500 sets of thickness measurements |
|
Language |
English |
|
Power supply mode |
Two size 5 batteries |
|
Continuous working period |
About 100 hours (no backlight on |
|
Weight |
Approx. 238g (battery included) |
|
Size |
150mm×74mm×32 mm (Height × Width × Thickness) |
