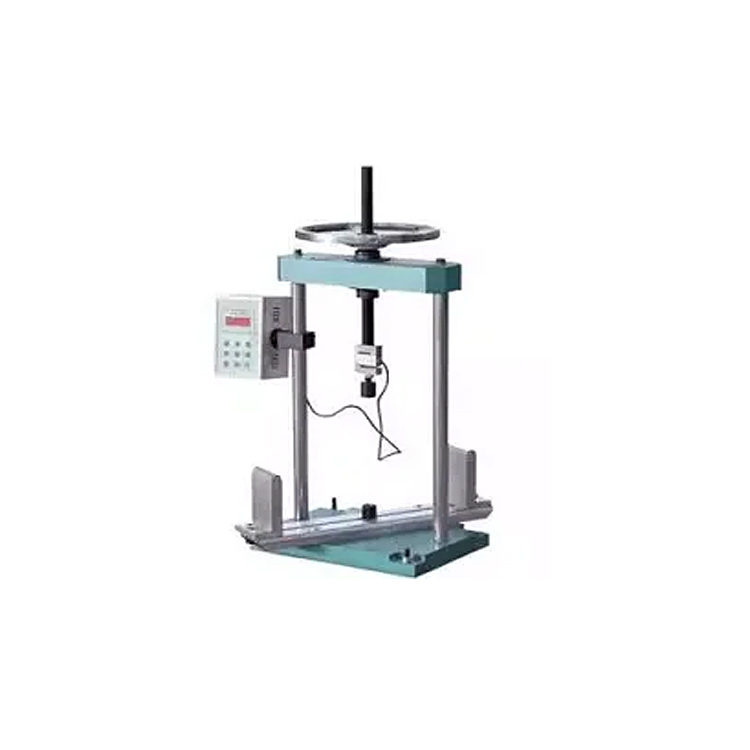

10kN Digital manual type Wood-based Panel Testing Machine

Function & Features
1) Widely used in mechanical property test for wood-based panels, surface decorated wood-based panels, medium density wood, in line with standard EN310, EN319, EN320, ASTM D1037, DIN52366, JISA5909.
2) It can perform tests of surface bonding strength, surface gluing strength, static bending strength, elastic modulus, nail withdrawal capacity, glue-line shear strength and internal bonding strength, etc.,
3) It is the ideal testing equipments for quality inspection and plates industries.

Technical Specifications
1)Max. load 10KN
2)Min. reading of test force 1N
3)Accuracy class Class 1
4)Relative error of indicating value ±1% within 200-10000N
5)Relative error of repeatability of indicating value of load ≤1%
6)Relative error of zero point of load ±0.1%
7)Test space (H*W) 380*400mm
8)Loading mode Manual
9)Power supply: 220V±10%, 50Hz; 0.25kW
10)Dimension (L*W*H): 500*300*800mm
