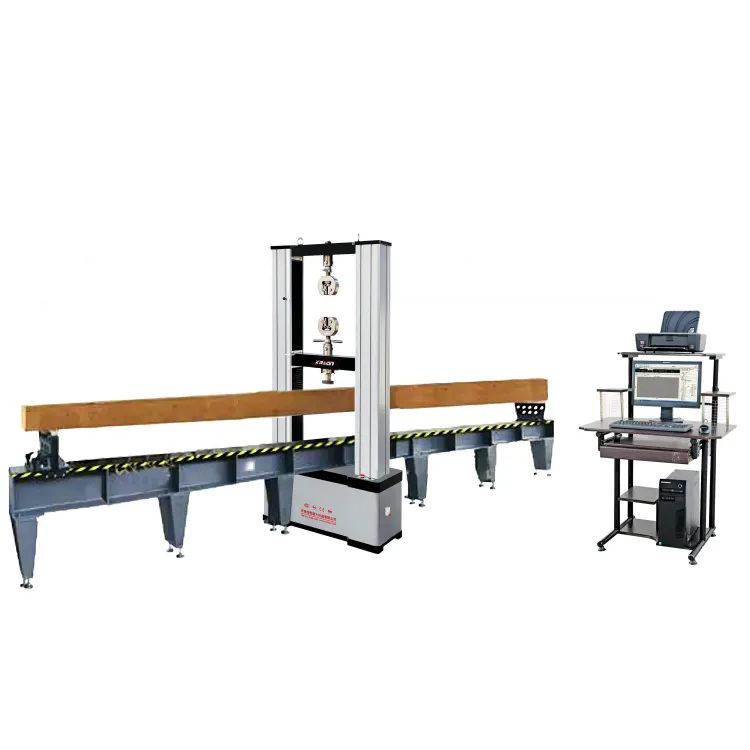

50KN Laminated Veneer lumber Structural Timber Mechanical Properties Tester
Application
50kN laminated veneer lumber structural wood mechanical properties testing machine, used for LVL laminated tensile bending mechanical properties test, LVL laminated lumber flexural strength and elastic modulus test, standard lumber tensile bending mechanical properties test, PSL parallel product Tensile-bending mechanical properties test of finished wood, tensile-bending mechanical properties test of glued-laminated building blocks, tensile-bending mechanical properties test of timber structural components, tensile-bending mechanical properties test of frame components.
Standards
GB/T17657-1999，EN，ASTM,GB/T16491-1996，ISO1689,EN310, EN319, EN320, ASTM D1037, DIN52366, and JISA 5909.
Main Parameters
| MODEL | KS-MWW-K50E |
| Load Capacity (kN) | 50 |
| Load accuracy | Class 0.5 |
| Testing Load Accuracy | ±0.5% |
| Testing Load Range(FS) | 0.4%- 100% |
| Load Resolution | 1/500,000FS |
| Deformation accuracy | ≤±0 5% of 0 4%~ 100% of rated capacity |
| Position resolution | 0.025μm |
| Position accuracy | ±0.02mm or 0.5% of displacement (whichever is greater) |
| Crosshead speed range | 0.001-500 |
| Crosshead speed accuracy | ±0.5% of set speed (zero or constant load |
| Crosshead Travel(mm) | 1 100 |
| Max. Tensile Testing Space(mm) | 650 |
| Max. Compression Testing Space(mm) | 1000 |
| Test width (mm) | 750(Customized) |
| High-precision USA load cell offers high stiffness, high stability, and high linearity Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test Self-recognition (TEDS) function,Regular self-calibration | |
| Load cell | |
| Position limit switch | Upper and lower lights |
| Power Supply | AC220V± 10%, 50Hz/60Hz |
| Overall Dimensions (L*W*H: mm) | 950x660x2000 |
| Net Weight(kG) | 680 |
