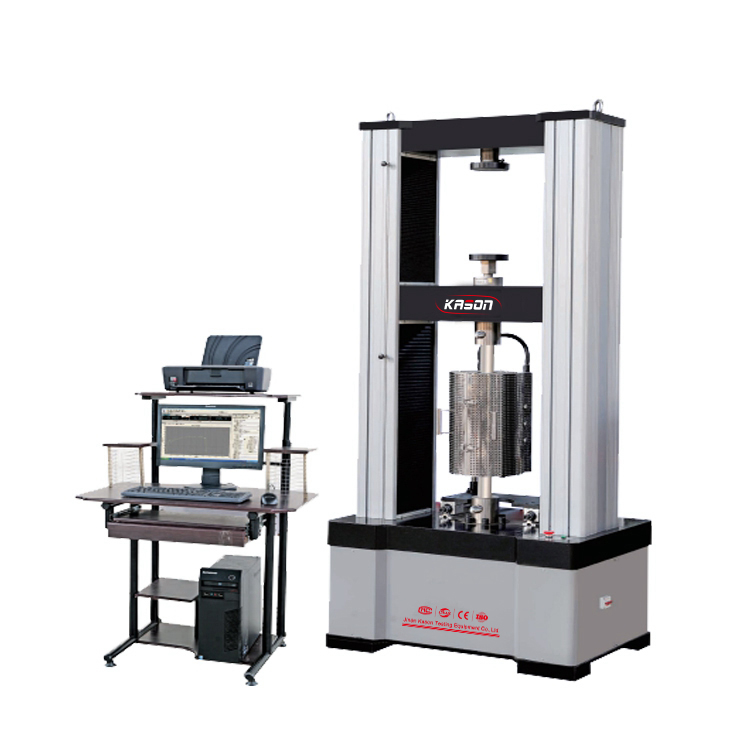

1100℃ Computer control High Temperature testing machine
Application
This series testing machines is mainly suitable for rubber, plastic profile, plastic pipe, sheet, sheet, film, wire and cable, waterproof coil, wire and other materials in high temperature or low temperature environment, tensile, compression, bending, peeling, tearing, shear and other mechanical properties of the test; It is very convenient for users to carry out research and development, quality control work, and is an ideal testing instrument for industrial and mining enterprises, commodity inspection arbitration, scientific research units, colleges and universities, engineering quality departments.
Specifications
Load cell
Capacity
kN
20
Calibration standard
-
0.5 according to ISO 7500-1 - Meets ASTM E-4
Accuracy grade
%
0.5 of reading
Testing load accuracy
%
Deformation accuracy
%
Displacement accuracy
%
Position resolution
μm
0.025
Force range
FS
0.4%-100%
Force resolution
FS
Capacity/500, 000(fully auto scaling of single measurement range)
Force accuracy
%
0.5 of reading
Controller
Sampling frequency
Hz
Up to 1000
Closed loop control frequency
Hz
Up to 1000
Software
English
Load resolution
kN
Capacity/500, 000(fully auto scaling of single measurement range)
Speed
Testing Speed
mm/min
0.001-1000
Speed accuracy
%
±0.5 of set speed
Main frame
Frame type
-
Dual test space
Test width
mm
450
Crosshead Travel
mm
1100
Max. Tensile Testing Space
mm
770
Max. Compression Testing Space
mm
1000
Power supply
V/Hz
220V-50/60
Overall Dimensions (L*W*H)
mm
840 x 570 x 1850
Net Weight
kG
420
