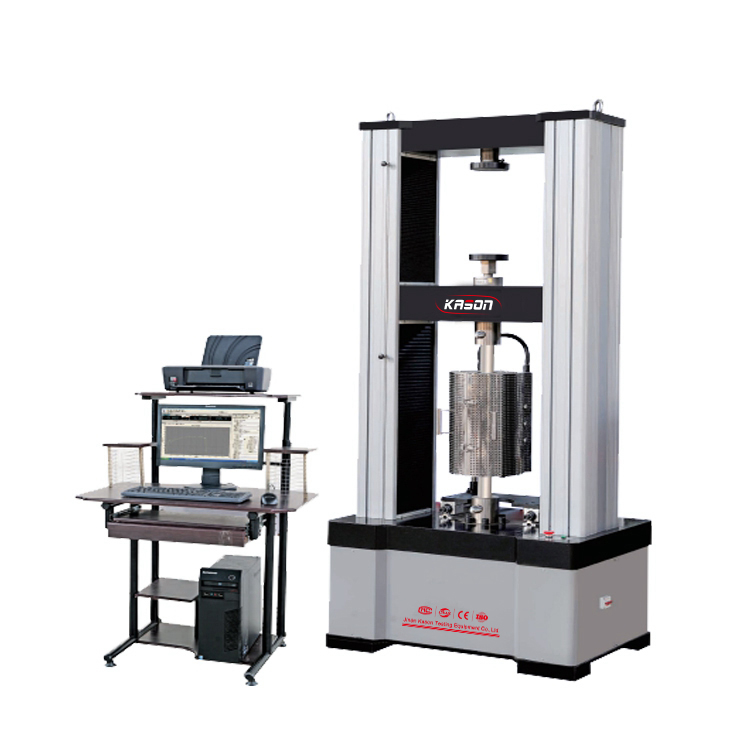

100KN Computer Control High Temperature(1400 ° C ) Electromechanical Universal Testing Machines
Application range
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
Specifications:
| Load Capacity | 100KN | |
| Load accuracy | Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 | |
| Testing Load Accuracy | ±0.5% | |
| Testing Load Range | 0.4%-100%FS | |
| Load Resolution | 1/500,000FS | |
| Deformation measuring range | 0.2%—100%FS | |
| Deformation accuracy | ≤±0.5% | |
| Position resolution | 0.04um | |
| Deformation resolution | 1/±500000FS of the max deformation | |
| Position accuracy | Within ±0.5% of the value | |
| Crosshead speed range | 0.001-500mm/min | |
| Crosshead speed accuracy | ±0.5% of set speed | |
| Constant force, constant deformation, constant displacement control range | 0.5%--100%FS | |
| Constant force, constant deformation, constant displacement control accuracy | When the set value is <10%FS, it is within ±1% of the set value; | |
| Crosshead Travel | 1000mm | |
| Max. Tensile Testing Space | 650mm | |
| Max. Compression Testing Space | 650mm | |
| Test width | 550mm | |
| Compression Platen | Ф100mm | |
| Load cell | High-precision USA load cell | |
| Motor | Delta Ac servo speed control system | |
| Position limit switch | Upper and lower lights | |
| Power Supply | AC220V±10%, 50Hz/60Hz | |
| Overall Dimensions (L*W*H) | 950x660x2000mm | |
| Weight | 680kg | |
| Operating temperature | 800 to 1400 ° C | |
| Long-term operating temperature | 1400 ℃ | |
| Heating element material | Silicon-molybdenum rod | |
| Heater diameter | φ12 (approx.) | |
| Temperature measuring element | Type B thermocouple 800 to 1400 ° C | |
| Number of heater segments | 1 | |
| Number of temperature measuring points | 1 | |
| Temperature sensitivity | 0.1 ℃ | |
| Temperature measurement accuracy | 0.002 | |
| Heating rate | 1℃ to 20℃/min | |
| Temperature accuracy | Test temperature (℃) | Temperature fluctuation |
| 500～1200 | ±1 | |
| 1200～1400 | ||
| Inside diameter of the furnace | Diameter × length: φ220×260mm | |
| Overall dimension | Diameter × length: φ540×550mm | |
| Grips | Tensile grips for flat specimen | Length:100mm,width:6mm,Thickness:4-5mm |
| Bending grips(span:60mm) | ||
| Temperature measurement and control system | HMI intelligent control | |
| Operating voltage | 380V | |
