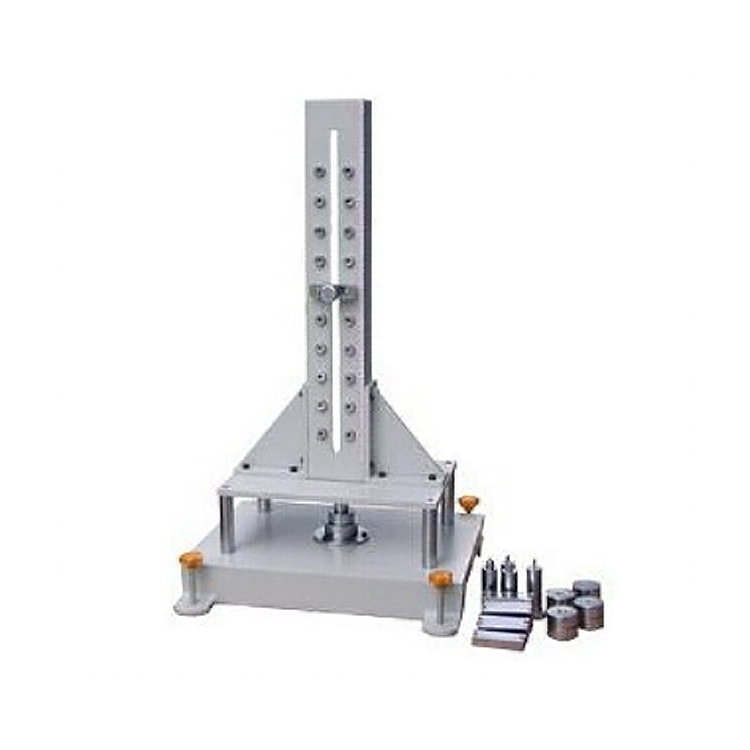

Plastic Dupont Impact Tester
Application:
Plastic Dupont impact tester used for testing the plastic specimen, PVC specimen, coating specimen resistance to impact performance. The specimen in the machine ram, to a certain height of the hammer impact, check the damage, deformation or peeling situatio
Meet the standards:
JIS K5600-1999,ASTM,EN,GB,ISO,UL
Specification:
|
Test sample: |
Plastic sample |
Coating sample |
|
Drop height: |
80~1000mm, 50mm interval |
50~500mm, 50mm interval |
|
Ball drop controlling mode: |
Manual setting |
|
|
Impact ball weight: |
1000,2000G |
300,500,1000G |
|
Ball diameter: |
7.9mm(5/16in) |
1/2,1/4,3/16,1/8,1/16in |
|
Sample base diameter: |
Plane 8.1mm,15mm |
plane 1/2,1/4,3/16,1/8,1/16in |
|
machine dimension(D*W*H): |
450* 580*1280mm |
300*580*770 |
|
Weight: |
60kg |
45kg |
