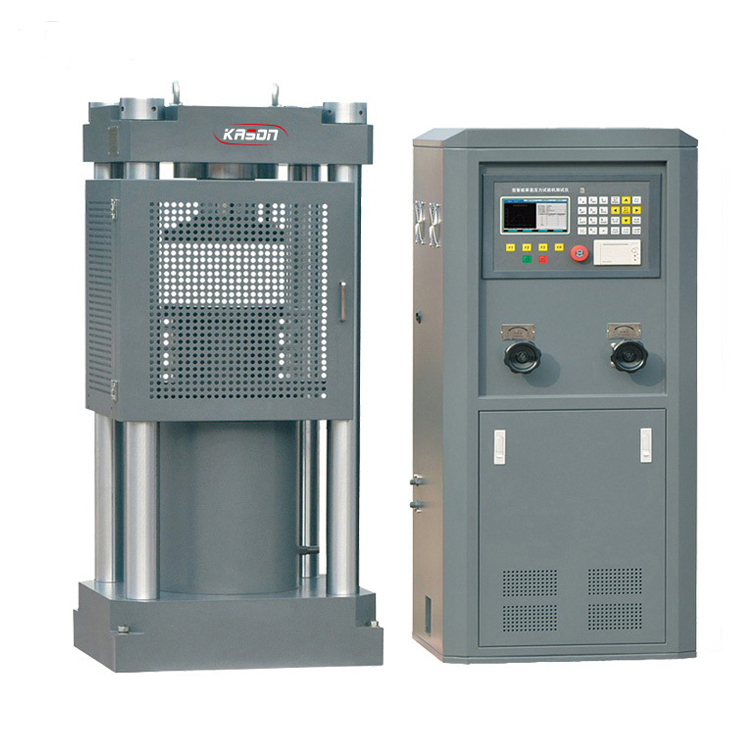

2000KN Digital Display Compression Testing Machine
1. Application
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Main Specifications.
| Model | YES-2000BG | YES-1000BG |
| Max. load | 2000kN/200Ton | 1000kN/100Ton |
| Machine Class | 1 class | |
| Range of test force | 4% ~100%FS | |
| Indicating value accuracy | ±1% | |
| Piston stroke | 200mm | |
| Distance between platens | 360mm | |
| Upper platen size | Φ300mm (Can be customized) | |
| Lower platen size | Φ300mm (Can be customized) | |
| Display | LCD Display Curves | |
| Power supply | AC380V/50Hz/3 phase(can be customized) | |
| Size | 640×560×1500 mm | |
| Weight | 1500 kg | |
